Cary 5000 UV-Vis-NIR spectrophotometer
Cary 5000 UV-Vis-NIR Spectrophotometer
The large sample compartment can be expanded to hold large accessories and integrating spheres for spectral and diffuse reflectance. The LockDown mechanism makes it possible to quickly change and position accessories for reproducible results.
- UV-Vis & UV-Vis-NIR Instruments
Request a Quote
Product Details
- Measure beyond 8.0 absorbance units with reference beam attenuation.
- Measure 175 to 3300 nm using a PbSmart NIR detector for lower stray light and extended photometric range.
- Cary WinUV software—modular software with powerful analysis and enhanced transfer and report export capabilities.

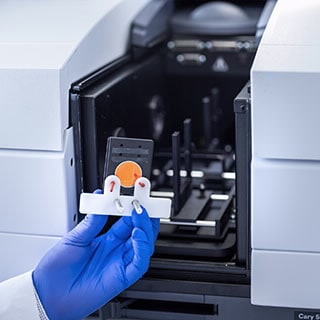

- Versatile set of accessories for materials research, including spectral and diffuse reflectance.
- Variable slit widths (down to 0.01 nm) for optimum control over data resolution.

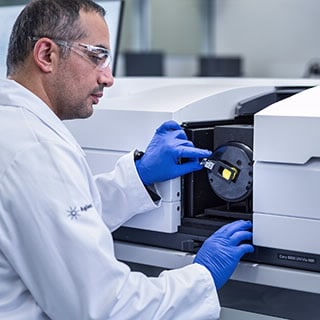

- Large sample compartment with LockDown mechanism for quick changes and positioning—for reproducible results.
- Maximum light throughput using Schwarzchild coupling optics for higher accuracy at low transmission levels.
- Minimal noise and stray light using a floating aluminum casting and double Littrow monochromator.
- Extended dynamic range by attenuating the reference beam to balance double beam signal levels.
- Nitrogen purging—separate purging in the sample and monochromator compartments to reduce oxygen and water vapor in the ultra-violet.
Depth |
|
Height |
|
Light Source |
|
Maximum Scanning Speed |
|
Photometric System |
|
Power Consumption |
|
Spectral Bandwidth |
|
Wavelength |
|
Width |
|
Z-height |
|
- Key Literature
-
Cary 4000/5000/6000i Series UV-Vis-NIR Spectrophotometers Brochure
The Cary 4000/5000/6000i Series UV-Vis-NIR spectrophotometers are unrivaled, precise and flexible, and are designed to meet your application requirements
- Brochures
- English
- 13 Jul 2022
- 9.23 MB
Optical Characteristics and Thickness of 2-layered Structures
Refractive index and film thickness measured using a Cary 5000 with UMA accessory
- Application Notes
- English
- 02 Dec 2018
- 714.47 KB
Effects of Filter Composition, Spectral Bandwidth, and Pathlength on Stray Light Levels in the Near-Infrared Region
Evaluating Stray Light Levels on the Agilent Cary 5000/7000 Spectrophotometers
- Technical Overviews
- English
- 14 Jun 2022
- 1.02 MB
- Application Notes
- Brochures
- Data Sheets
- Flyers
- Posters
- Primers
- Selection Guides
- Technical Overviews
- FAQs
-
FAQ: Cary Win UV cool tricks on Graphics Windows
On most applications, there are some things we can do to make the graphics window look different and sometimes easier to read. This information relates to the use of the SCAN Application, but can also apply to other applications.
FAQ: How to Run Cary UV/Vis Instrument Performance Tests
When necessary, the operator of a Cary UV/Visible instrument can perform tests to access the performance of the instrument and software. The following steps outline execution of these performance tests.
Why Do We Perform a Zero and Baseline in Scan?
The purpose for zeroing is to balance both the reference beam and the sample beam. By adjusting to zero, the instrument readings reflect the absence of sample.
Why is My Cary Spectrophotometer Failing Initialization or Making a Screeching Noise?
Why is My Cary Spectrophotometer Failing Initialization or Making a Screeching Noise?
How Do I Perform a Cary 6x6 Method in Advanced Reads?
How Do I Perform a Cary 6x6 Method in Advanced Reads?
- Instruction Sheets
- Site Preparation Checklists
- User Manuals
Didn't find what you need? Contact our support team.
