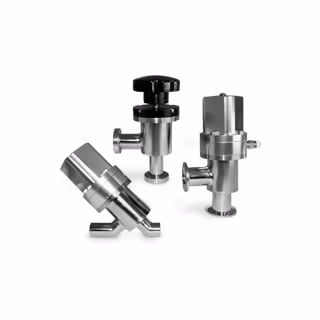

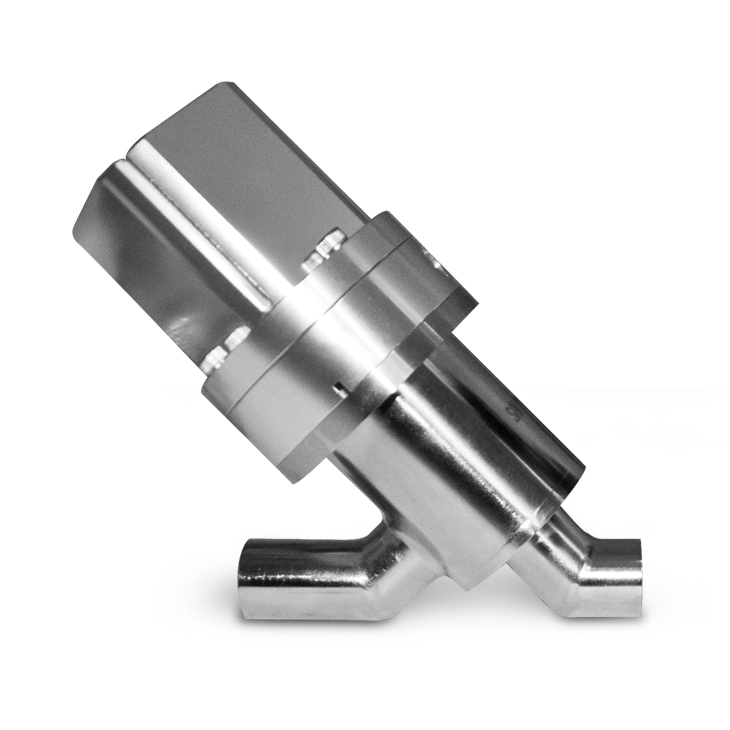

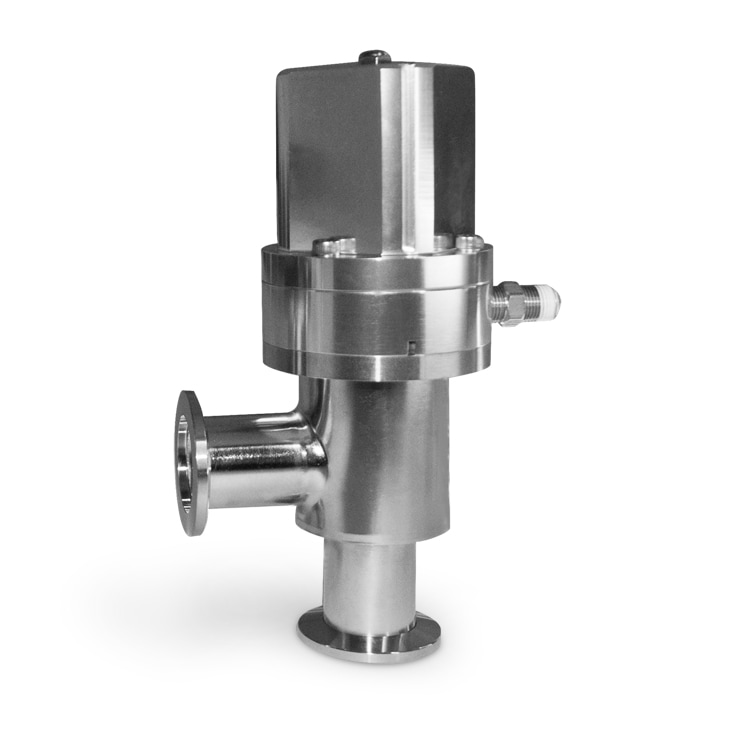

Angle & Inline Valves, Agilent Stainless Steel Tube Valves

Features

Long-life, edge-welded bellows actuator seal for 1.5 million life cycle
TIG-welded internal body joints
Electropolished interior and exterior surfaces
ConFlat metal seal flanges, recommended for ultrahigh vacuum service
KF, ISO flanges for quick elastomer seals, ideal for high-vacuum applications requiring frequent assembly and disassembly
Tube-Weld ports for permanent connections
Manual and electropneumatic actuators
Viton elastomer bonnet seals
Optional magnetic reed switch position indicators
Optional, air-control solenoid valves for 115 VAC, 240 VAC, and 24 VDC service
