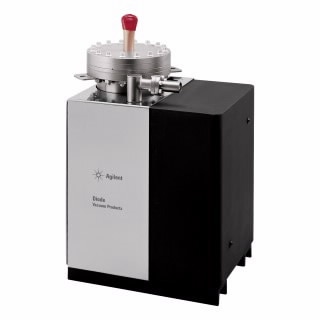

VacIon Plus 150 Pump
VacIon Plus 150 Pump
- Large Ion Pumps

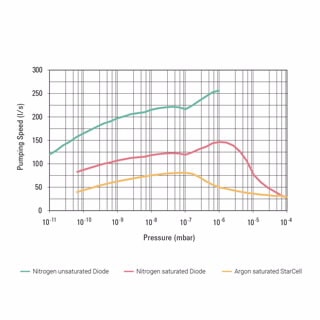

- Available with StarCell, diode, and noble diode elements to provide the best pumping speed for different gases
- Available with ConFlat 6² non-rotatable flange, additional 6² ConFlat port, double-ended and side ports available with a choice of feedthroughs (Fischer, King, DESY, Varian, Safeconn) in different orientations
- No moving parts provide vibration free operation for sensitive applications
- Low leakage current provides stable vacuum pressure reading
- Low magnetic field for minimal system interference
- Vacuum processed at >400 °C and pinched off under vacuum to ensure cleanliness and vacuum integrity prior to installation
- Customizable with different high-voltage feedthroughs, body geometries, additional ports and pumping cell arrangements and available with optically shielded baffles, external heaters, and magnetic shielding to meet your needs
- SEM versions available with ultralow leakage current and high stability for minimal electrical interference

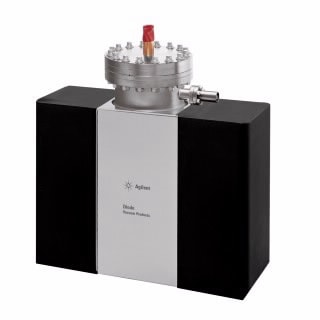

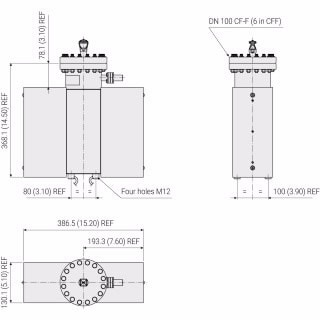

- Compact design body version available when dimensions are critical
|Maximum Baking Temperature||
|Maximum Starting Pressure||
|Weight (pump only)||
