Flexible and expandable, intelligent GC system

Features

The browser interface provides remote connectivity enabling you to monitor your smart GC system, check system logs, and perform diagnostics tests, from inside or outside the laboratory
The full-function touch screen gives a visual report of the system configuration letting you update the active method, perform maintenance routines, and check GC instrument status
Built-in intelligence autonomously monitors the health of the system, alerts the user of potential issues before they affect chromatographic performance, and offers helpful step-by-step guides to resolve issues
Unique sixth-generation microchannel-based EPC architecture provides a significant improvement in reliability and longevity against gas contaminants such as particulates, water, and oils, extending system uptime and the life of the instrument consumables
Capillary Flow Technology (CFT) modules, which are oven mountable and very low thermal mass, provide unique gas flow connections for multidimensional gas chromatography (GC x GC/Deans Switch), comprehensive two-dimensional gas chromatography (2D-GC) with flow modulation, and backflush at the beginning, middle, or end of an analytical column
Single-filament thermal conductivity detector (TCD) does not require a separate reference gas or manual potentiometer adjustment, yet provides a stable baseline with a minimal amount of signal drift commonly seen with valve switching
Autoranging flame ionization detector (FID) provides the ability to detect and quantitate from percent levels to parts per billion (ppb) in a single GC injection
Compatible with all GC/MS platforms
Sulfur or nitrogen chemiluminescence detector provides low ppb detection, equimolar response, and quantitation for sulfur or nitrogen contaminants without quenching from matrix
Helium conservation module, Gas Saver, and alternative carrier gas solutions can dramatically reduce the amount of helium used, offering flexibility and cost savings
Optional Hydrogen Sensor Module Series 2 detects hydrogen leaks early and shuts off gas flows, continuously monitors status using built-in intelligent diagnostics, and requires calibration only every six months
Optional Smart Keys, included with GC columns, provide information such as column usage with default parameters for configuration that helps automate method setup
Independently audited for environmental impact throughout the product lifecycle, received My Green Lab’s ACT (Accountability, Consistency, Transparency) label

Specifications


Capillary Flow Technology (CFT)	Yes (all CFT)
Detectors	4
Dimensions (WxDxH)	58 cm x 51 cm x 49 cm
Dual Simultaneous Injection	Yes
GC Detector MDLs	Premium
GC Diagnostics - Leak Check	Autonomous, hands-free
GC/MS Compatibility	Single quadrupole Triple quadrupole Q-TOF
Inlets	2
Maximum Temperature Ramp Rate	120 °C/min (120 V units are limited to 75 °C/min)
Operating Temperature Range	+4 above ambient to 450 °C -80 to 450 °C (with LN2 cryogenic cooling) -40 to 450 °C (with CO2 cryogenic cooling)
Oven Cool Down	450 °C to 50 °C in 4.0 minutes (22 °C ambient) 3.5 minutes with oven insert accessory
Peak Area Repeatability	<0.5% RSD
Retention Time Repeatability	<0.008%
Typical Pressure Control	0.001 psi
Valves	10

Return to top

Agilent Community

People celebrating on a mountain at sunrise

Get answers, documentation, and expert support

Subscribe for webinar updates
Topic forums for instruments & applications

Manuals, notes, and white papers
Knowledge Portal with curated content

Go to Agilent Community

Ask the Community

Technology

Improve Your Gas Chromatography with Backflush

Capillary Flow Technology enables flexible implementation of backflush on Agilent GCs for higher throughput, less maintenance, fewer recalibrations, longer column life, better results, and lower costs.

Learn More

Helium Conservation Module

A helium conservation module for 8890, 8860, 8850, or 7890 GC systems can drastically reduce your consumption of helium carrier gas and the associated cost, especially when used with Gas Saver. It can be programmed to switch to a different gas (typically nitrogen) when your GC is idle. The module is compatible with any inlet, backflush, and dual simultaneous injections.

Learn More

GC Intelligence

Built-in GC Intelligence enables you to work smarter with autonomous monitoring, self-guided maintenance procedures, remote connectivity, and other time-saving features that can improve laboratory efficiency.

Learn More

Multidimensional Gas Chromatography

Multidimensional chromatography introduces a second column with a different stationary phase into the flow path. Complex samples often have coeluting compounds so adding the selectivity of an additional column through heart cutting or GC x GC increases the GC resolving power and provides a solution to the problem of overlapping peaks.

Learn More

Retention Time Locking (RTL)

Retention time locking (RTL) enables the retention times on one Agilent GC or GC/MSD system to be matched exactly on another like system using the same nominal column.

Learn More

Applications

Solutions across the application spectrum

The versatility and flexibility of the 8890 GC allows it to address virtually any application your lab may require, from simple direct injections to complex methods. It has been used to test natural and refinery gas, petroleum-based samples, and solvents in the energy and chemical sector. It is used by environmental labs to detect and measure persistent organic pollutants in air, soil, and water. Food companies rely on the 8890 GC to ensure quality, safety, and authenticity.

Review a complete list of application notes to discover how the 8890 GC can help you address your analytical measurement needs.

Literature

Key Literature

Agilent 8890, 8860, and 9000 GC Browser Interface: A Tutorial

An introduction to the 8890, 8860, and 9000 GC Browser Interface.

White Papers
English
15 Apr 2022
3.37 MB
PDF

GC Intelligence: User-Guided Troubleshooting

An introduction to the GC instrument intelligence feature of troubleshooting

White Papers
English
22 Apr 2022
2.06 MB
PDF

GC Intelligence: Peak Evaluation

An introduction to the GC instrument intelligence feature of Peak Evaluation

White Papers
English
29 Sep 2022
7.94 MB
PDF

Application Notes

Brochures

Data Sheets

Flyers

Posters

Technical Overviews

White Papers

Support

FAQs

Frequently Asked Questions about Gas Chromatography (GC)

Learn about GC techniques and approaches that can improve performance and productivity, and get information about some of the more common troubleshooting and maintenance procedures for your GC instruments.

Firmware

Quick Reference Guides

Site Preparation Checklists

Software Utilities

User Manuals

More help is just a click away

If you didn't find what you need, try these resources or contact a specialist

Tools

GC Productivity Tools

Download method translation software plus calculators for vapor volume, pressure flow, solvent vent, and CFT.

GC Firmware Update Utility

Update the firmware on current and older GC systems and accessories, such as autosamplers and headspace samplers.

Helium Conservation Cost Savings Calculator

See how much helium and money you could save using Gas Saver and a helium conservation module for nitrogen standby.

Essential Supplies for Gas Chromatography Systems

Use these recommended supplies for your 8890/8860/8850/Intuvo GC to help you to achieve peak performance.

GC eSelector Tools

Find the appropriate columns, liners, ferrules, septa, and autosampler syringes for your GC methods.

Videos

GC Quality You Can Trust

00:03:33

Don't Let Septum Leaks Ruin Your Day

00:05:30

Rely on Agilent GC Systems

00:00:39

1
2

1 - 3 of 4 results

Return to top

News

Capillary Flow Technology Wizard Now Available in Data System Software for Fast, Easy Setup

A setup wizard for Capillary Flow Technology splitter and Deans switch modules is now available for Agilent and third-party chromatography data systems (CDS). Unlike the spreadsheet-based calculators offered in the past, this new integrated, intuitive software tool guides a user through the configuration process with valuable instructions and visual flow path diagrams available at every step. When complete, all setpoints are uploaded to the CDS method editor with the click of a button to help avoid manual transcription errors.

02 Jun 2025

Agilent Offers GC Image GCxGC Software for Comprehensive 2D-GC

GC Image GCxGC software is now available directly from Agilent. Chromatographers can use the unique cryogen-free Agilent Capillary Flow Technology reversed flow modulator to switch between columns and GC Image GCxGC software to visualize, analyze, and process data. This powerful combination provides a complete single-vendor solution for comprehensive two-dimensional GC.

04 Dec 2024

Agilent Introduces New GCxGC Analyzers for Aviation Turbine Fuels

New gas chromatography analyzers for conventional and synthetic aviation turbine fuel are now available from Agilent. Based on a comprehensive two-dimensional GC (GCxGC) configuration and GC Image GCxGC software, they are factory-built and tested to ensure they meet standard method requirements, including ASTM D8396 and NB/SH/T 6078.

03 Dec 2024

1
2
...
5

1 - 6 of 29 results

Return to top

Promotions

Featured

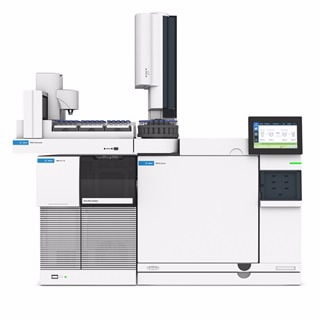

8890 GC System
