BioTek Cytation C10 Confocal Imaging Reader
BioTek Cytation C10 Confocal Imaging Reader
RUO
Cytation C10 confocal imaging reader combines automated confocal and widefield microscopy with conventional multimode microplate reading. The patented design gives exquisite resolution and optical sectioning capabilities for many sample types. A Hamamatsu scientific CMOS camera, Olympus objectives, and laser-based illumination deliver high-quality images.
Cytation C10 includes widefield fluorescence, brightfield and phase contrast optics. The variable bandwidth monochromator-based multimode plate reading is based on the proven design of the Agilent BioTek Synergy products. Environmental controls, 3D viewer, and Gen5 software enable high-quality results for many applications. The system delivers affordable confocal to every laboratory.
Cytation C10 includes widefield fluorescence, brightfield and phase contrast optics. The variable bandwidth monochromator-based multimode plate reading is based on the proven design of the Agilent BioTek Synergy products. Environmental controls, 3D viewer, and Gen5 software enable high-quality results for many applications. The system delivers affordable confocal to every laboratory.
For Research Use Only. Not for use in diagnostic procedures.
Download literature using the DOWNLOADS button above, or request more information about the Cytation C10 Confocal Imaging Reader.
Product Details
Features
- Cytation C10 offers affordable, benchtop confocal imaging for every laboratory
- Confocal microscopy enables improved image quality and analysis, revealing a level of detail in samples that is not possible with widefield optics
- High-quality optical components, including the Hamamatsu sCMOS Orca camera, Semrock filters, Olympus objectives, and other well-known brands, allow the capture of stunning, publication-quality images
- Combination of spinning disk confocal and widefield imaging plus multimode reader, allows the Cytation C10 to be ready for any assay with a modular, upgradable design

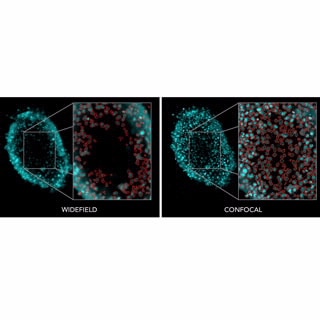

- Widefield imaging allows for faster acquisition of large samples at lower magnification, while confocal images small intracellular details or 3D samples, and both modes together provide highly multiplexed, multiparameter imaging experiments
- Environmental controls, including incubation and CO2/O2 control and monitoring, facilitate live cell imaging
- Imaging plus multimode detection and the hit-picking function quickly prescreen the microplate with the plate reader optics, then automatically image the samples that meet your hit criteria, saving time and data storage capacity
- Variable bandwidth, quad monochromator plate reader optics enhance assay performance, including increased sensitivity and specificity
- Combination of confocal and widefield imaging with multimode detection increases productivity with the ability to be ready for any application
How It Works
Applications
