Ask the Expert: How can I analyze virtually any polymer, from paints to polyolefins?
Graham Cleaver, Agilent Business Development Manager for ELSD/GPC/RID
Figure 1. Agilent 1260 Infinity II system, coupled with MDS, delivers highly accurate molecular weights and distribution profiles.
Gel Permeation Chromatography (GPC) has become established as one of the preferred techniques for characterizing polymers. Molecular weights and distributions are useful in predicting processibility, structural properties, and the way a polymer will perform in a given application. Agilent is the only manufacturer of all the components required for high performance GPC. The Agilent 1260 Infinity II GPC system takes polymer characterization to complete automation, high precision, and excellent reproducibility.
When coupled with either the linear range mixed bed or individual pore size columns, calibrated with standards and data processed by the Agilent GPC software, the Agilent 1260 Infinity II delivers highly accurate molecular weights and distribution profiles. When coupled with the MDS, absolute molecular weights and structural information take polymer analysis to the next level (Figure 1).
Q. How can any polymer be analyzed?
The Agilent 1260 Infinity II system with refractive index detection is the instrumentation required for the majority of polymers based on carbon and hydrogen with different side groups.
Quite often polymers are not UV active and do not possess a UV chromophore. The solvent of choice is often tetrahydrofuran (THF). Occasionally the polymer’s physical properties can require an alternative solvent. One example is epoxy resins. A number of polymers, such as polyvinyl alcohol (PVA), are water-soluble. The majority of polymers can be characterized using an Agilent 1260 Infinity II system equipped with refractive index.

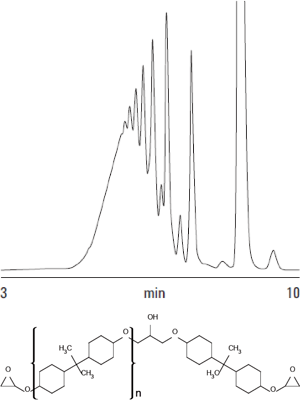

Figure 2. Analysis of epoxy resins using Agilent 1260 Infinity II GPC system with Agilent PLgel column.

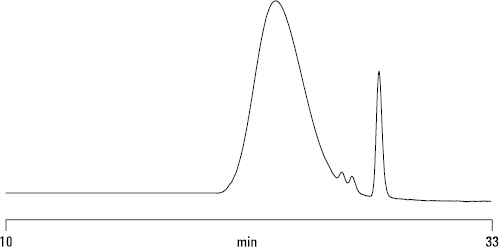

Figure 3. Chromatogram of water soluble polyvinyl alcohol using the Agilent 1260 Infinity II with Agilent PL aquagel-OH SEC columns.
Figure 4. Overlay of the molecular weight distributions of two samples of polyamide, clearly showing the difference between the two materials.
Figure 5. Data obtained on three samples of polyethylene using the Agilent PL-GPC220 equipped with refractive index and viscometry detectors.
Q. Which GPC system is best suited for analyzing a varied range of polymers?
The way that paint adheres to a surface and the speed at which it dries is related to physical properties. Epoxy resins consist of very low molecular weight materials, which are important in the way the polymer performs (Figure 2). In testing paints, precise flow rates, high column resolution, and stable baselines ensure accurate, reproducible results.
Poly vinyl alcohol
GPC is a convenient method of fingerprinting materials like poly vinyl alcohol for quality control, and is more informative in production control and end-use performance evaluation. The Agilent 1260 Infinity II system, coupled with easy to use Agilent GPC software and an autosampler that delivers high sample throughput, allows for unattended, automated analysis that can save time (Figure 3) and deliver the answers required for batch-to-batch reproducibility.
Analysis of a polymer, such as Nylon, is a challenge because solubility is limited to HFIP and m-cresol. Molecular weight influences many of the key physical parameters−including strength, brittleness, melt flow, and how easily the material is processed. Nylon is a common polyamide that has a range of uses, most commonly in clothing. Higher temperature is required to reduce the eluent viscosity. Temperature stability is paramount in obtaining accurate results (Figure 4).
Analysis of polyethylene and polypropylene is a challenging application that requires a unique solution. The Agilent PL-GPC220 GPC/SEC system maintains samples at the high temperatures required to keep these polymers in solution. Additionally, the Agilent PL-GPC220 accommodates RID, light scattering detection, and viscometry in a high precision oven for stable baselines and high quality results (Figure 5).
Agilent offers powerful solutions for polymer analysis
Our experts have provided you with answers and solutions for analyzing virtually any polymer.
