Conductance Made Simple: Q = P x Seff
Impact of conductance on effective pumping speed
Conductance
Click here to see the impact of Conductance on vacuum performance
+
−
Pumping Speed
Click here to see the impact of Pumping Speed on vacuum performance
+
−

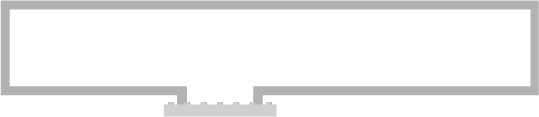

Conductance chamber

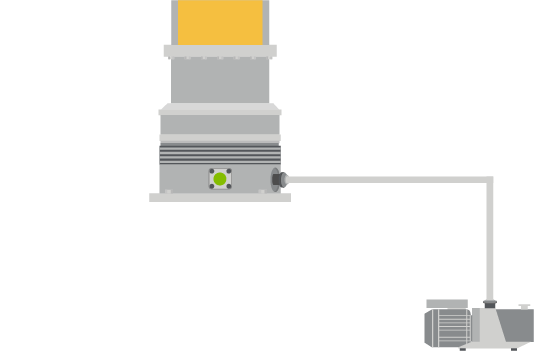

Impact of conductance on pumping speed
Vacuum performance

Q = P x Seff

As Conductance increases, Effective Pumping Speed (Seff) increases, and Pressure decreases
As Conductance decreases, Effective Pumping Speed (Seff) decreases, and Pressure increases
