An Emerging Class of Cancer Immunotherapy

Oncolytic viruses represent an innovative class of therapeutics designed to target cancer cells. These viruses (wild type, attenuated, or genetically engineered) preferentially target and kill tumor cells, while leaving healthy cells intact. Oncolytic viruses have a "two-fold" effect"; they not only directly cause oncolysis, but they also release new virions and stimulate both the innate and adaptive immune responses.

To date, researchers have engineered oncolytic viruses that express immune regulators able to directly attribute to antitumor immunity. Additionally, combined with other immunotherapies such as checkpoint inhibitors, CARs, TCRs, or TILs, oncolytic viruses can act in a synergistic fashion to improve the effectiveness of promising cancer treatments. Ongoing work is aimed at further optimizing and arming oncolytic viruses to boost antitumor immunity. In total, there are an estimated 125 oncolytic virus cancer treatment therapies in development to date. As we look towards the future, it is crucial to establish effective workflows that streamline a researcher’s ability to titer and measure potency of oncolytic viruses.

The xCELLigence Real-Time Cell Analysis (RTCA) instruments analyze cancer cell killing with high sensitivity and without the need for labels or modifications, which allows researchers to study the interaction between viruses and target cells under conditions that approximate human physiology more closely than other in vitro techniques. Additionally, by continuously monitoring target cell killing, these instruments do away with laborious endpoint assays and readily yield cell killing data under multiple conditions simultaneously.

Request Info
×

Contact Us


Application Highlight: Evaluating the Potency of Oncolytic Adenoviruses for Cancer Cells Destruction

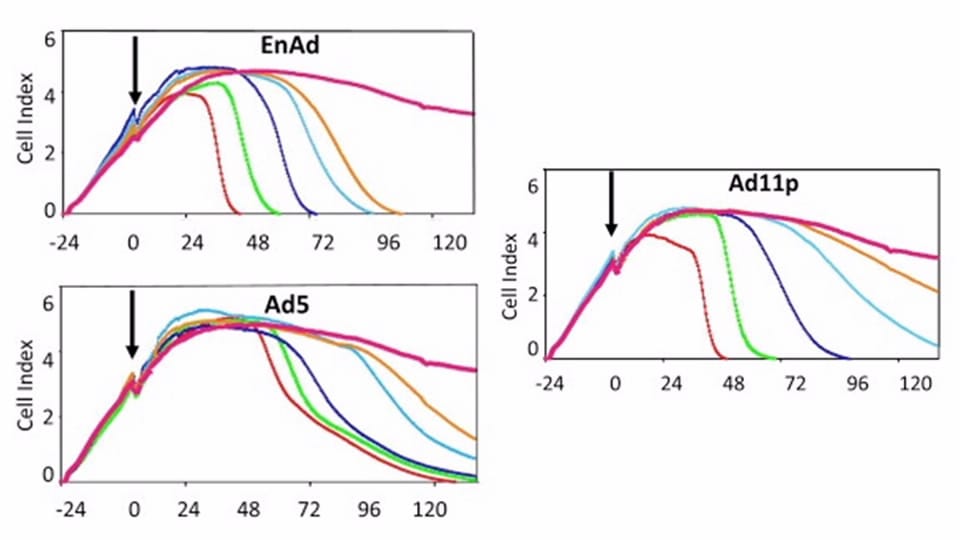

In this example, xCELLigence RTCA was used to monitor killing of A549 lung cancer cells by a chimeric adenovirus (Enadenotucirev, EnAd) which infects cells by binding to CD46 and/or desmoglein, both widely expressed on many carcinoma cells. In a potency analysis, the cytotoxicity (i.e. killing kinetics) of EnAd at a range of concentrations was compared with wild-type adenoviruses Ad11p and Ad5. At the highest concentration (red, 500 PPC (particles per cells)), EnAd and Ad11p caused complete cell killing (Cell Index decreasing to zero) between 36-48 hours post-infection. However, at lower virus concentrations (0.8-20 PPC) EnAd is substantially more potent than Ad11p, displaying both an earlier onset of cytotoxicity and a more rapid completion of cytolysis. When compared with EnAd and Ad11p, wildtype Ad5 is much less efficient at killing the cancer cells, requiring 5 days to achieve full cell killing even at the highest virus concentration.

This data highlights the ability of xCELLigence RTCA assays to quantitatively capture differences in the potency of different oncolytic viruses.


Imaging Oncolytic Virus-Mediated Killing

Using the power of eSight to visualize virus-mediated killing, A549 blue labeled cells were subjected to an Oncolytic Virus (GFP labeled) at the 25-hour time point. Samples were treated with highest the MOI (~5), shown with and without brightfield. There is also a strong correlation between the impedance signal and the physical state of the cells. As there are various stages such as cell fusion, morphology changes, and viral cytopathic effects, segmentation parameters are crucial to optimize over the entire time course. With the eSight, researchers can generate impedance and confirmatory imaging data.


Impedance Oncolytic Virus-Mediated Killing

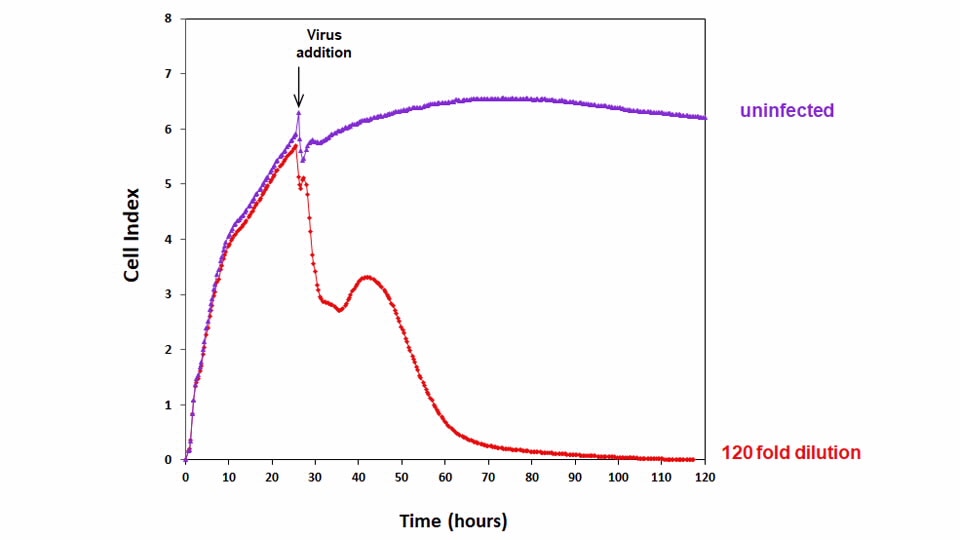

Using the power of eSight to visualize virus-mediated killing, A549 blue labeled cells were subjected to an Oncolytic Virus (GFP labeled) at the 25-hour time point. Upon virus addition, there was a sharp decline in cell index in the 120-fold dilution (oncolytic virus) treated cells versus those uninfected (control). Impedance based results are further confirmed with imaging, which illustrates how the virus causes infected cells to fuse with their neighbors and lead to mass apoptosis.



Request a Demo

Interested in learning more? Request a demo by clicking below

Request demo
×

Contact Us


Oncolytic Virus Publications

Publications

  1. Characterization of virus-mediated immunogenic cancer cell death and the consequences for oncolytic virus-based immunotherapy of cancer. Ma, J., Ramachandran, M., Jin, C. et al. Cell Death Dis 11, 48 (2020). https://doi.org/10.1038/s41419-020-2236-3
  2. Oncolytic adenovirus expressing bispecific antibody targets T-cell cytotoxicity in cancer biopsies. Freedman JD, Hagel J, Scott EM, et al. EMBO Mol Med. 2017;9(8):1067-1087. doi:10.15252/emmm.201707567
  3. Oncolytic Adenoviral Delivery of an EGFR-Targeting T-cell Engager Improves Antitumor Efficacy. Fajardo CA, Guedan S, Rojas LA, et al. Cancer
  4. Oncolytic Group B Adenovirus Enadenotucirev Mediates Non-apoptotic Cell Death with Membrane Disruption and Release of Inflammatory Mediators. Dyer A, Di Y, Calderon H, et al. Mol Ther Oncolytics. 2016;4:18-30. Published 2016 Dec 10. doi:10.1016/j.omto.2016.11.003
  5. Novel epi-virotherapeutic treatment of pancreatic cancer combining the oral histone deacetylase inhibitor resminostat with oncolytic measles vaccine virus. Ellerhoff TP, Berchtold S, Venturelli S, et al. Int J Oncol. 2016;49(5):1931-1944. doi:10.3892/ijo.2016.3675

Protocols
