4300 Handheld FTIR has a range of sampling interfaces
4300 Handheld FTIR Sampling Accessories

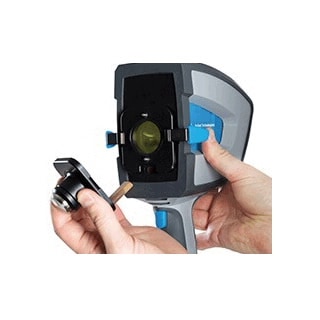

To handle this range of applications, the system has five different sample interfaces that are instantaneously interchangeable, and provide a specific means of delivering light to the sample. These interfaces have radio frequency identification (RFID), providing seamless integration between the sample interface and specific software methods.
- FTIR Accessories
Request a Quote
Product Details
- The diamond ATR sample interface is ideal for the analysis of solids, liquids, pastes, and gels.
- The diffuse reflectance interface is suited for a wide variety of samples, including artwork, soils, rocks and minerals, composites, rough plastics, fabrics, and corrosion on metal surfaces.
- The specular reflectance interface allows the analysis of films and coatings on reflective metal surfaces such as aluminum or steel. The angle of incidence is 45 degrees.
- The grazing angle interface has an angle of incidence of 82 degrees making it ideal for the analysis of very thin (submicron) films. The Ge ATR sample interface (comprised of a germanium crystal) is ideal for the analysis of highly absorbing solids and liquids.
- Key Literature
-
Agilent 4300 Handheld FTIR Spectrometer Brochure
At-site. Immediate results. True non-destructive analysis. Perform accurate, non-destructive material testing with the Agilent 4300 Handheld FTIR.
- Brochures
- English
- 01 Mar 2014
- 4.56 MB
Non-Destructive Analysis of Substrates and Contaminants by FTIR Specular Reflectance
Agilent 4300 handheld FTIR spectrometer with specular reflectance identifies substrate materials, evaluates presence of contaminants, quantifies contaminants.
- Application Notes
- English
- 24 May 2023
- 2.13 MB
Comparison of Portable FTIR Techniques for the Analysis of Paints, Minerals & Concrete
ATR, Diffuse Reflectance and 45 degree specular reflectance FTIR spectroscopy measurements were compared for paint, concrete and rock samples.
- Application Notes
- English
- 21 Aug 2017
- 1.25 MB
- Brochures
- Catalogs
- FAQs
-
FTIR Spectroscopy, Infrared Spectroscopy—FAQs
Learn about infrared spectroscopy & FTIR spectroscopy—FAQs on how FTIR works, how FTIR spectrometers work, FTIR measurements, and techniques like ATR-FTIR
- Supplemental Information
More help is just a click away
If you didn't find what you need, try these resources or contact a specialist
FTIR Analysis & Applications Overview
A guide to modern applications of FTIR analysis using benchtop and handheld instruments.
ATR-FTIR Spectroscopy Overview
Learn about the most common FTIR sampling technique for measuring liquids, solids, powders, semisolids, and pastes.
