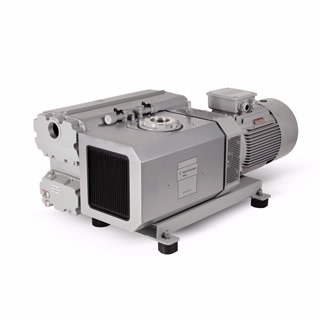

MS-631 Rotary Vane Pump
MS-631 Rotary Vane Pump
The Frame Less version allows you to couple a Roots Pump directly to the inlet flange eliminating the need for a frame. Our reliable MS-631 pump is used in combination with diffusion HV pumps in a wide range of industry applications including metallurgy, heat treatment, vacuum coating, e-beam welding, LNG transportation.
- Single-stage (MS) Rotary Vane Pumps for Industry
Product Details
- Industry leading vacuum performance with a base pressure of 8 x 10-2 mbar (6 x 10-2 torr)
- Highly robust for stringent applications
- Steel rotor, special design carbon fibers vanes for extended pump life as well as gas ballast valve for pumping high water vapor content
- Compact and easy to install thanks to its smaller footprint compared to pumps of same pumping speed
- Highly reliable thanks to the highly efficient oil circulation system
- Environmentally friendly with its built-in demister system integrated with a floating valve for oil recovery
