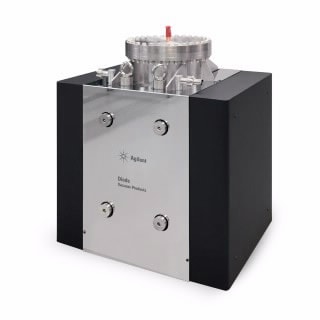

VacIon Plus 1000 Pump
VacIon Plus 1000 Pump
This pump is available with three types of elements. Diode elements are for general-purpose UHV and XHV where the highest hydrogen pumping speed is critical and the system is seldom vented or prone to atmospheric leaks. StarCell elements handle a high amount of noble gases (better than noble diode) and hydrogen (comparable to the diode) and provide the highest speed and capacity for methane, argon, and helium. Noble diode elements are used for general-purpose UHV and XHV where pumping of residual noble gases is required.
- Large Ion Pumps
- Available with StarCell, diode, and noble diode elements to provide the best pumping speed for different gases
- Available with ConFlat 12² non-rotatable flange, additional ConFlat port, double-ended and side ports available with a choice of feedthroughs (Fischer, King, DESY, Varian, Safeconn) in different orientations
- No moving parts ensures vibration-free operation for sensitive applications
- Low leakage current provides stable vacuum pressure reading
- Low magnetic field minimizes system interference
- Vacuum processed at >400 °C and pinched off under vacuum to ensure cleanliness and vacuum integrity prior to installation
- Customizable with different high-voltage feedthroughs, body geometries, additional ports, and pumping cell arrangements and available with optically shielded baffles, external heaters, and magnetic shielding to meet your needs
|Maximum Baking Temperature||
|Maximum Starting Pressure||
|Weight (pump only)||
