Cytation Cell Imaging Multimode Readers

Ready for any Assay

Automated Confocal, Widefield and Upright Microscopes & Multi-Mode Plate Reader

Watch Video
Ready for Any Assay
3D cell culture

Nucleic acid quantification

Live cell imaging

Biochemical assays

Label-free cell counting

Histology

Calcium flux

Apoptosis & necrosis

Slide scanning

Cell migration & invasion

Cell proliferation

Cell viability & toxicity

Confluence

Fast kinetics

Genotoxicity

Immunofluorescence

Microbiology

ELISpot imaging

Phenotypic assays

Stem cell differentiation

Transfection efficiency

Whole organism imaging

Normalization

Phagocytosis

Signal transduction

Translocation

Colony counting
Seven Imaging Modes

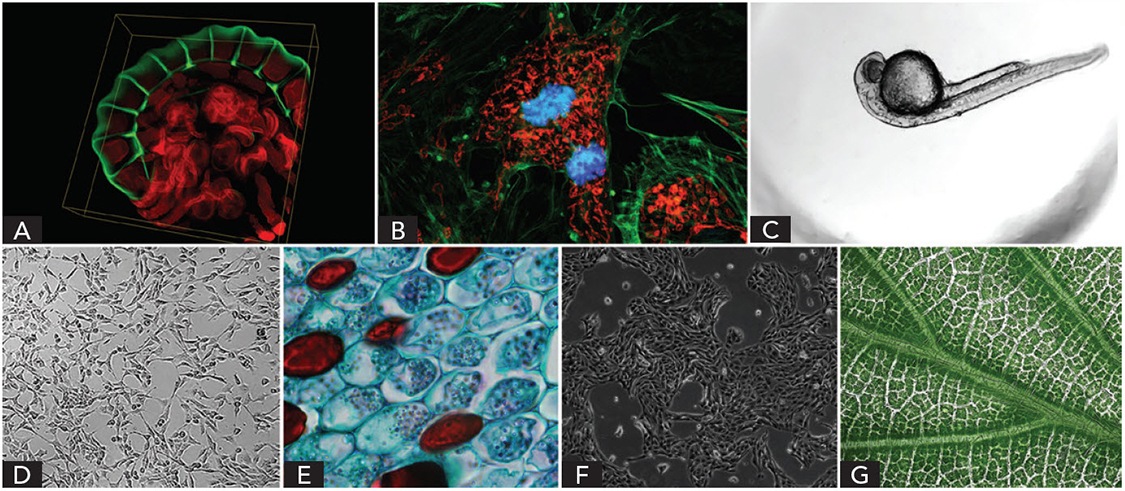

Powerful imaging for a wide range of applications, including live and fixed cell biologies: A. Confocal, B. Fluorescence, C. Brightfield, D. High contrast brightfield, E. Color brightfield, F. Phase contrast, G. Upright reflected and transmitted light.
Detection Modes

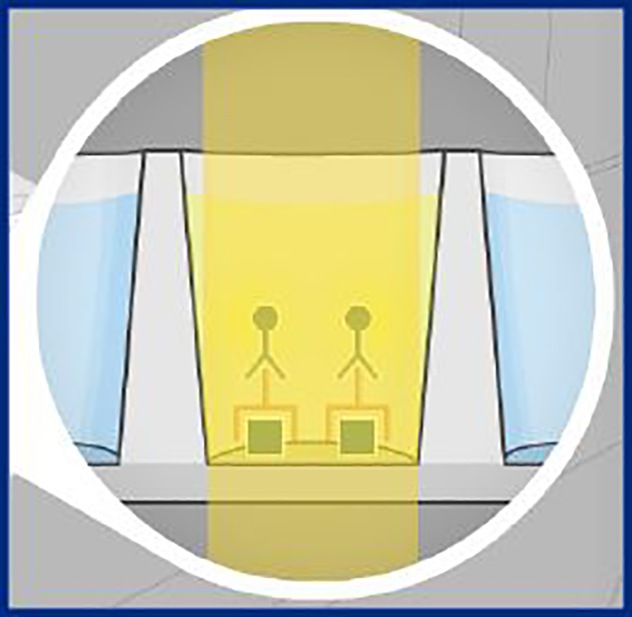

Absorbance

Learn More

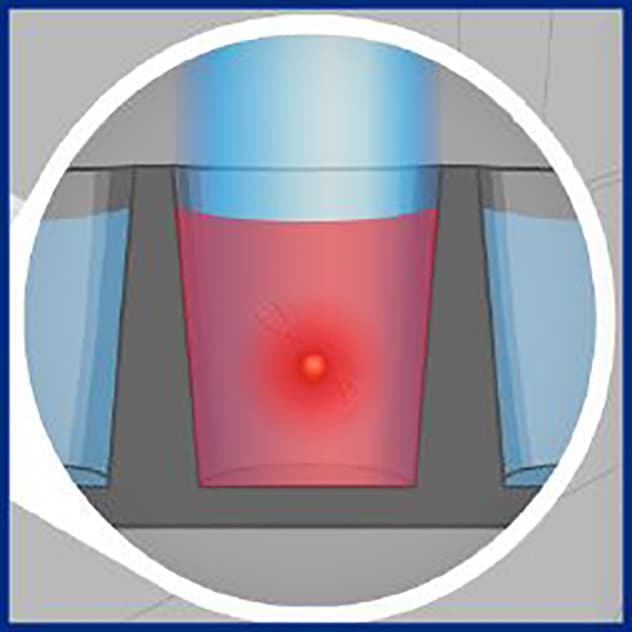

Fluorescence Intensity

Learn More

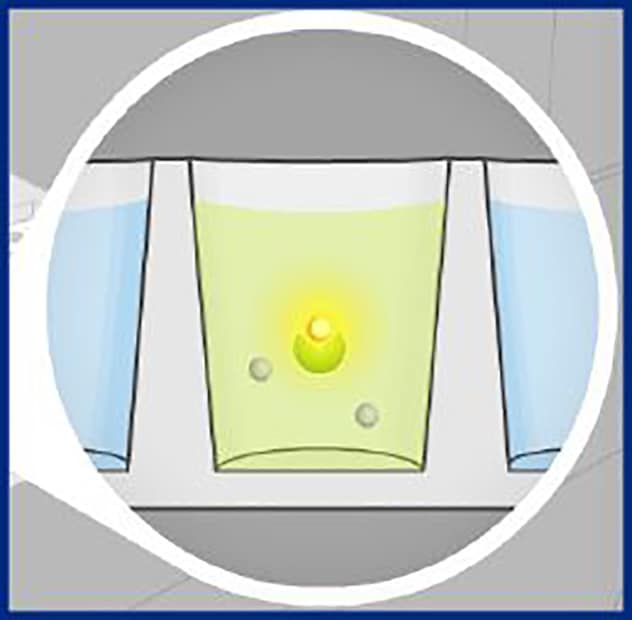

Luminescence

Learn More

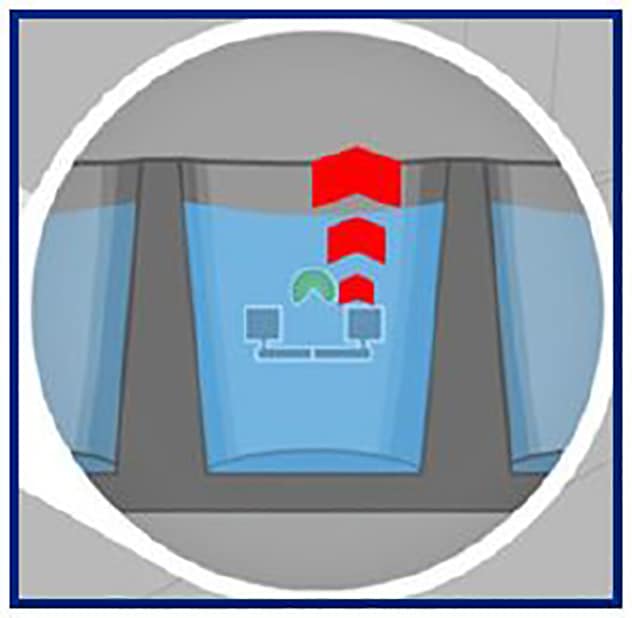

Time Resolved Fluorescence

Learn More
Visualization and Analysis

With Gen5 software you acquire high quality images across a broad range of applications. Augmented Microscopy automates the steps of a typical microscopy workflow, making image capture, processing, and analysis easy and powerful, to produce publication-ready images and data.

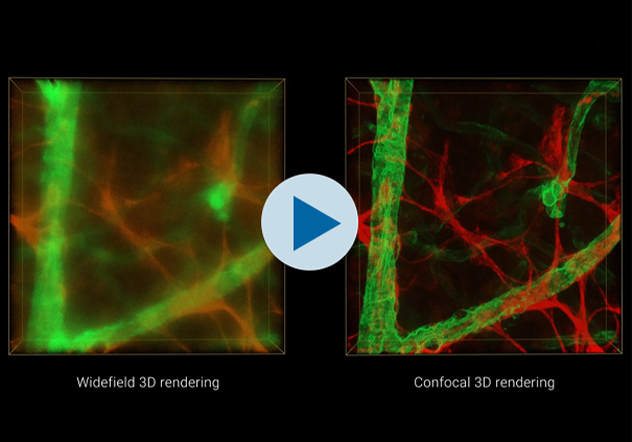

Widefield (left) and confocal (right) rendering of mouse retina tissue section z-stack. Confocal movie captured with Cytation C10.
Watch video >

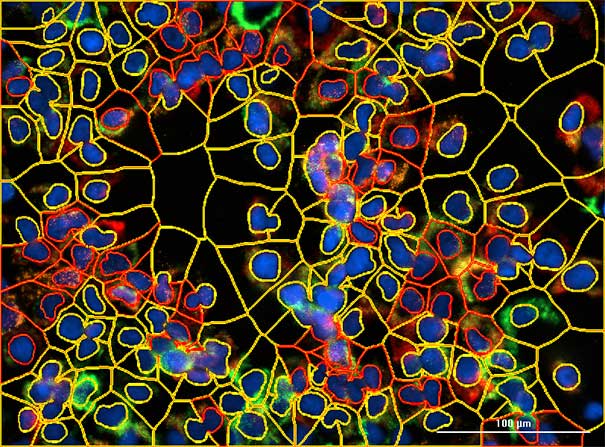

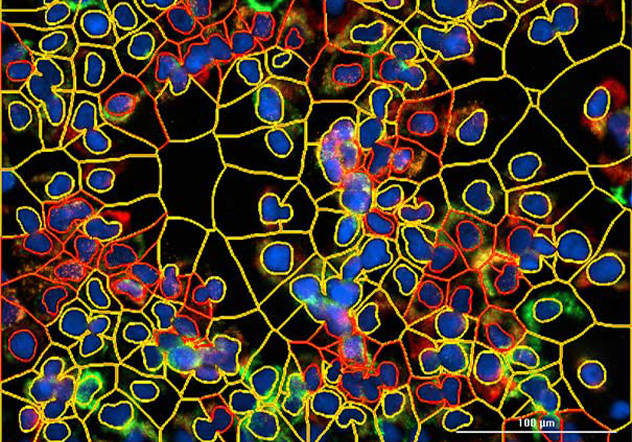

Secondary masks quantify mean fluorescent signal from labeled targets. Subpopulation analysis identifies cells responding to treatment.

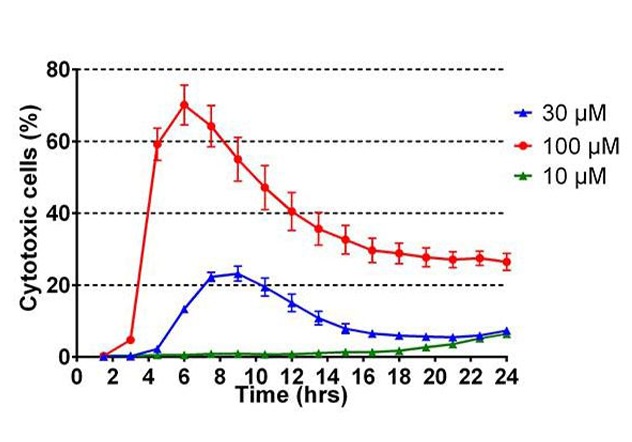

The graph shows % of cytotoxic cells over time after exposure to 30 or 100 µM Oridonin.
Workflow Automation

capture > process > analyze > publish
in a fully automated workflow

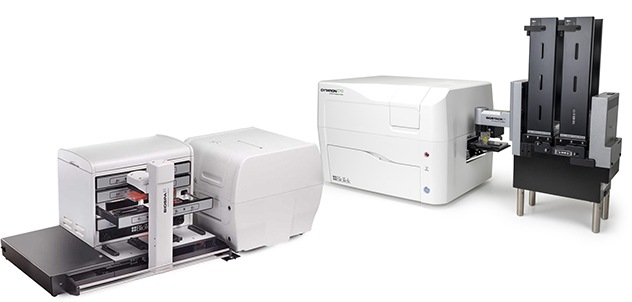

Cytation integrates with BioSpa 8 and BioStack for automated multi-mode and live cell imaging workflows.

Learn more
Peripherals

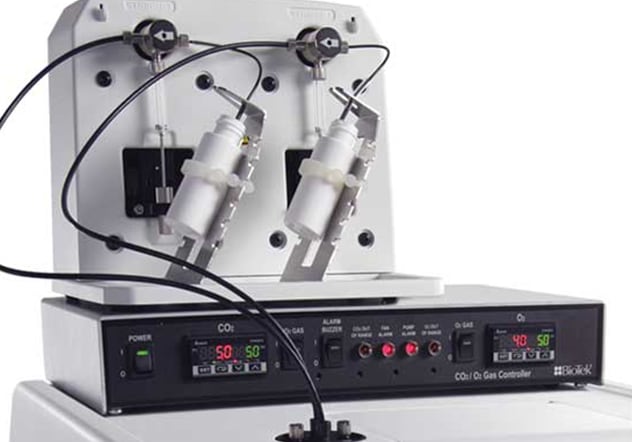

The compact gas controller maintains control of CO2 and O2 levels for live cell assays.

Learn More

The dual reagent injector module allows fast cellular reactions to be imaged or detected.

Learn More

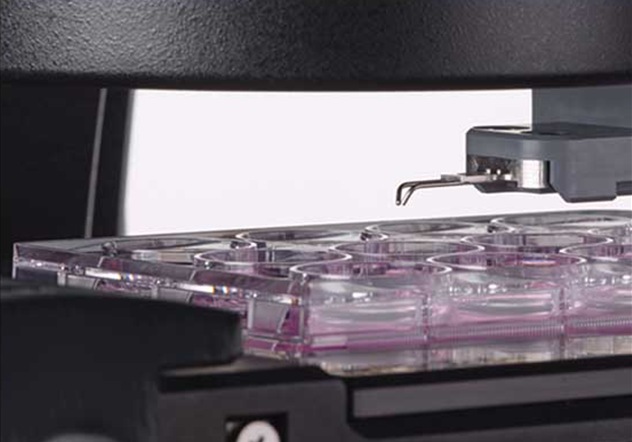

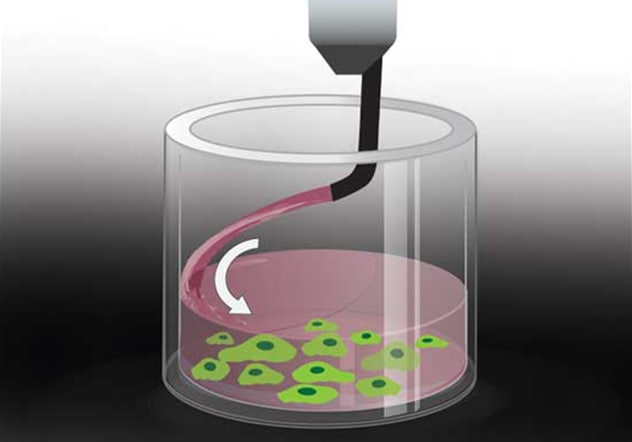

Angled injector tips protect cell monolayers from shear stress during injection.

Learn More

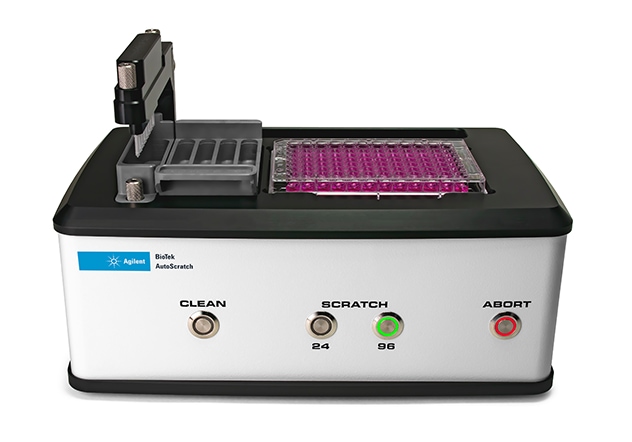

AutoScratch Wound Making Tool automates cell migration and scratch wound assays with Cytation.

Learn More

Which Cytation is Right for You?

	Cytation C10	Cytation 7	Cytation 5	Cytation 1
General
Microplate types	6- to 1536-well plates	6- to 1536-well plates	6- to 1536-well plates	6- to 1536-well plates
Other labware	Slides, cell culture dishes and flasks, hemocytometers, chamber slides	Slides, cell culture dishes and flasks, hemocytometers, chamber slides	Slides, cell culture dishes and flasks, hemocytometers, chamber slides	Slides, cell culture dishes and flasks, hemocytometers, chamber slides
Incubation	to 45 °C	to 45 °C	to 65 °C	to 45 °C
Joystick Controller	●	●	●
BioStack compatible	●	●	●	●
BioSpa compatible	●	●	●	●
Agilent BenchCel compatible		●	●	●
Multi-mode plate reading	●	●	●	●
Imaging
Widefield fluorescence	●	●	●	●
Confocal fluorescence	●
High contrast brightfield	●	●	●	●
Brightfield	●	●	●
Color brightfield	●	●	●
Phase contrast	●		●
Magnifications available	1.25x, 2.5x, 4x, 10x, 20x, 40x, 60x	1.25x, 2.5x, 4x, 10x, 20x, 40x, 60x	1.25x, 2.5x, 4x, 10x, 20x, 40x, 60x	1.25x, 2.5x, 4x, 10x, 20x, 40x, 60x
Inverted microscope	●	●	●	●
Upright microscope		●
Multi-Mode Plate Reading
Fluorescence intensity	●	●	●	●
Luminescence	●	●	●	●
Monochromator UV-Vis absorbance	●	●	●	●
Time-resolved fluorescence			●	●
Fluorescence polarization			●	●
Alpha detection			●
Filter-based fluorescence			●	●
Monochromator fluorescence	●	●	●
