Agilent LC/MS/MS solutions provide effective identification and quantitation of contaminants in botanical drug supplements
Andreas Tei Agilent Global Pharma Segment Manager
Thomas Glauner Agilent Senior Application Scientist
More botanical drug products than ever before are being cultivated in large scale farming operations where agrochemicals are commonly in use. The routine screening and quantitation for hundreds of pesticides plays an important role in increasing final product safety. Additionally, contamination with noxious weeds or fungal infections has raised the importance of additional testing for other common contaminants, such as mycotoxins and pyrrolizidine alkaloids.
Use of modern orthogonal analytical technologies, such as liquid chromatography or gas chromatography coupled with mass spectrometry or ICP-OES/MS, are required to meet the latest standards from the United States Pharmacopeia (USP chapters <561> <563> <565>) and the European Medicines Agency Guidelines for botanical drug products. Advanced workflows and methodologies are needed to help to minimize safety concerns like a potential contamination with harmful residues, mycotoxins or heavy metals or an adulteration by the illegal addition of active pharmaceutical ingredients, dyes, and chemically synthesized active marker compounds to the original natural product.
Figure 1. Agilent 1290 Infinity II UHPLC coupled with a 6400 Series ion funnel triple quadrupole mass spectrometer.

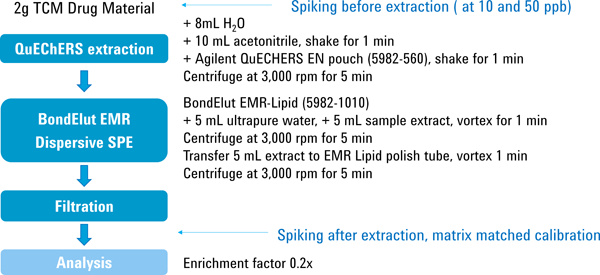

Figure 2. Schematics of the sample preparation workflow.

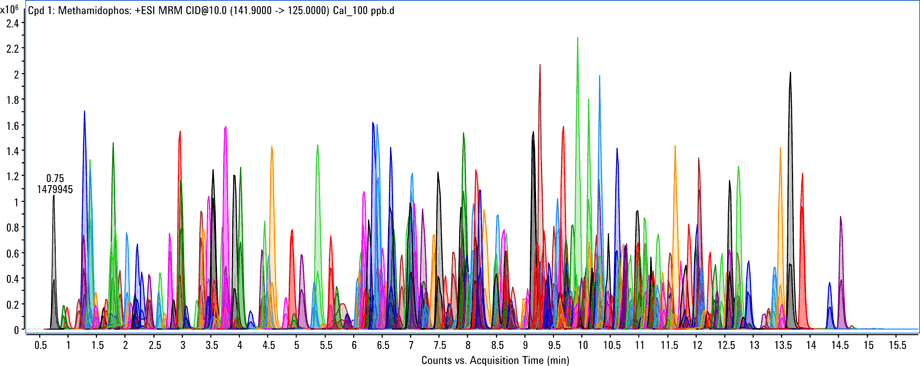

Figure 3. Reconstructed ion chromatograms displaying all acquired MRMs.

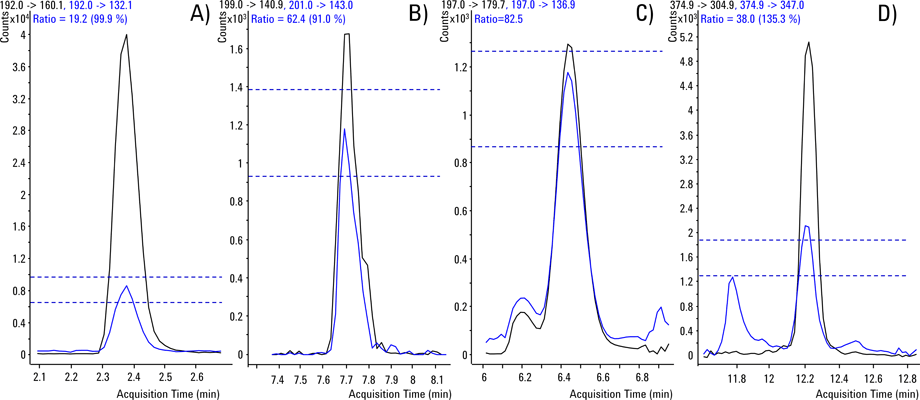

Figure 4. The ratios from qualifier and quantifier ions must be within the specifications to confirm the presence of compounds. The following pesticides have been detected in different samples: A) Carbendazim in Mor folium B) MCPA in Herba epimedii C) DNOC in Flos magnolia D) Profenofos in Cinamoni ramulus
To demonstrate these techniques, ten different herbal drugs that are commonly used in Traditional Chinese Medicine (TCM) were purchased from a pharmacy in Germany. We created a new workflow to screen and quantify common pesticides, mycotoxins and pyrrolizidine alkaloids in one analytical method. Herbal drug samples were analyzed using an Agilent 1290 Infinity UHPLC coupled to a highly sensitive Agilent 6400 Ion-Funnel triple quadrupole (QQQ) mass spectrometer, as shown in Figure 1.
Clean sample prep techniques facilitate accurate compound analysis
The LC/MS system was operated with dynamic MRM and in fast polarity switching mode. A reconstructed ion chromatogram displaying the acquired MRMs is shown in Figure 3. Two MRM transitions were acquired for each compound to identify and confirm the presence of a compound based on the chromatographic co-elution and a consistent ratio between the quantifier and the qualifier ion. Contaminants were only reported if the requirements of the SANTE guidelines were met (Figure 4).
Agilent QuEChERS and EMR cleanup combine to help meet SANTE guidelines
Recovery studies were made by spiking the plant materials with a comprehensive standard mix containing a total of 303 compounds (pesticides, mycotoxins, pyrrolizdine alkaloids) to concentrations corresponding to 10 µg/kg and 50 µg/kg. These samples were compared with extracts, which were spiked with the same standard mix, and to the same concentrations after extraction. With the generic QuEChERS extraction and EMR cleanup, more than 82% of the spiked compounds showed extraction recoveries of 70 to 120%, which is within the requirements of the SANTE guidelines.
After investigating a very small sample number of ten different herbal drugs, we demonstrated that there are safety gaps regarding the drug products purity, as pesticides were detected in concentrations above the EU maximum residue level. Further orthogonal analytical technologies like GC/MS and ICP-MS are needed to obtain a more comprehensive overview of possible contaminants, in order to guarantee safety of botanical drug products. These results were published as a scientific poster for the 5th Annual Meeting of GP-TCM Research Association-cum-summit on Compendium of Materia Medica and Innovative Drug Discovery in Chinese Medicine. Contact your Agilent representative today to learn more.
