Portable Field Case

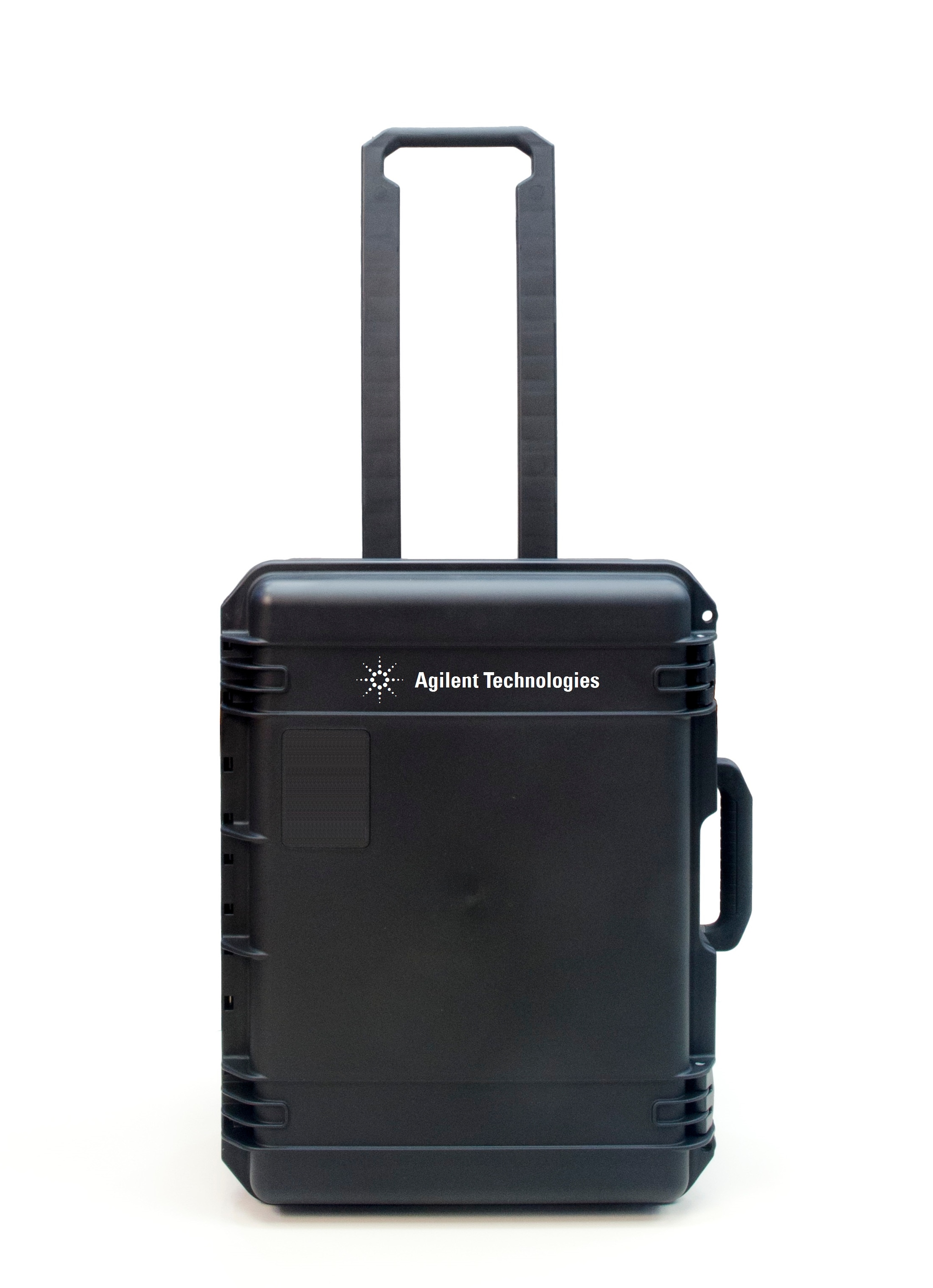

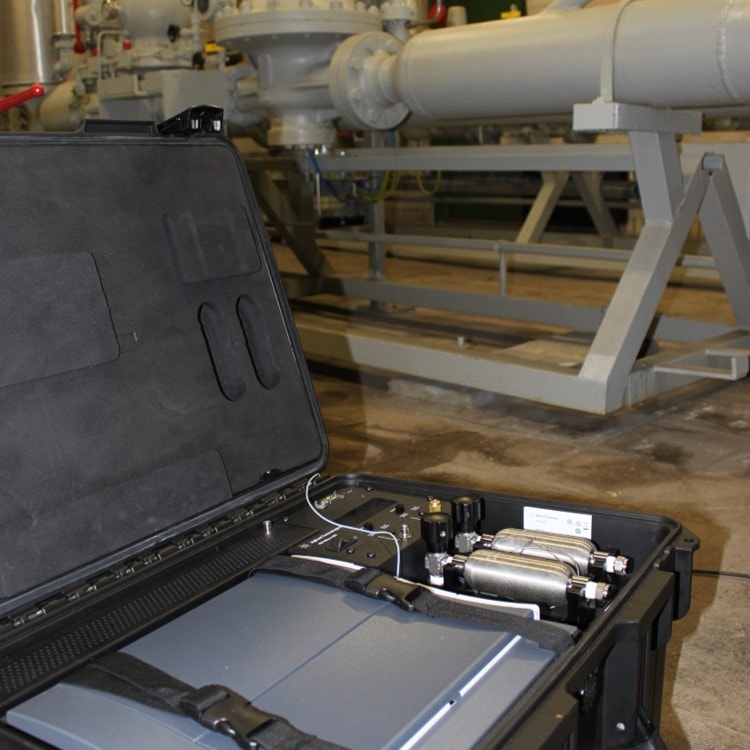

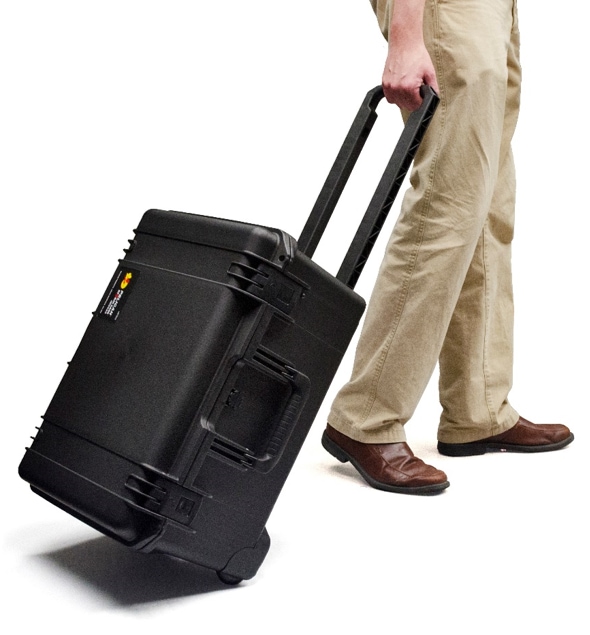

Take your Micro GC analysis to your field sites for field perimeter monitoring, multiple drilling locations, and measurements at natural gas pipelines and metering stations. The rugged industry standard Pelican case equipped with grips and telescope handle bar and in-line wheels ensures a trouble free transportation of your valuable instrument to your sample. This is particularly important if your sample location is very remote or sample integrity could be compromised in transit to a central analytical laboratory. A self-contained, portable version is available if there is no carrier gas or power available at the measurement location. Built-in gas cylinders and optional rechargeable battery provide up to eight hours of productive field time. Instrument control, data analysis, and diagnostic testing can be conducted at the instrument via a lined connection.
Features
-
Rugged, industry standard Pelican case, allows easy transport to field locations
-
Configurations for 1 to 2; or 3 to 4 independent analytical GC channels, each with pneumatics, injector, column and detector
-
Quickly setup in the field for any application and very fast results
-

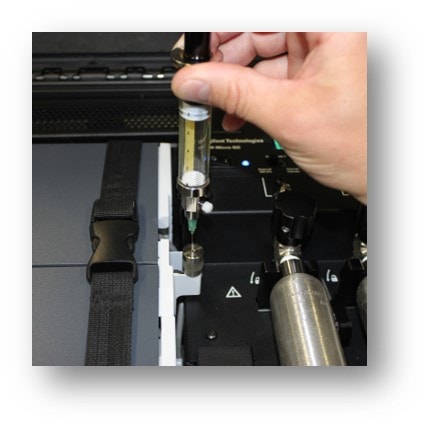

Connect a sample line or do manual injections via a syringe or luer lock device
-
Operate without external power or gas sources, with included refillable gas canisters and rechargeable battery packs, add an optional second battery pack for up to 8 hours of continuous operation
-
Use of external power and/or carrier gas is also possible
-
Batteries are automatically charged during operation with external power
-

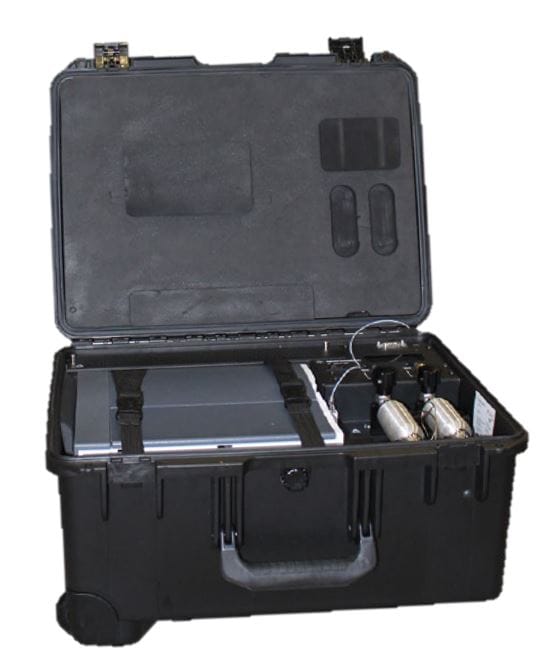

Quick connections on the gas canisters allows for easy refilling and replacing in the field case
-
An LCD screen shows Micro GC status as well as battery life and gas canister pressure
-
Choose your carrier gas for maximum application flexibility – use two of three carrier gas choices – helium, argon, nitrogen
Together with the 490-Mobile option this solution enhances the out-of-lab capabilities of the Micro GC significantly. Some added advantages of this total solution:
- Mobile user interface for wireless connection to a mobile device
- Less carry-on luggage allows you to reach your sample location easy
- Wireless connection ensures a quick and easy startup and as a result your analysis is performed faster than ever before
- The Wireless connection allows you to take shelter or sit in your car during the analysis
