UV-Vis-NIR Polarizer and Depolarizer Accessories
Polarizer and depolarizer accessories control the plane polarization of the light beam in a spectrophotometer. The unpolarized light emitted by the spectrophotometer's lamp is partially polarized by the instrument optics when it reaches the sample. The selected spectral bandwidth, and photomultiplier used, will also affect the polarizing characteristics of a spectrophotometer.

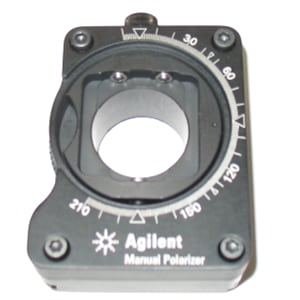

The polarizer is a wire grid, mounted in a slide with dial, designed for Cary 4000, 5000, 6000i, and 7000 UV-Vis spectrophotometers. The depolarizer consists of two crystalline quartz wedges, assembled so that the crystal axes are at 45 degrees.
The polarizer is a wire grid, mounted in a slide with dial, designed for Cary 4000, 5000, 6000i, and 7000 UV-Vis spectrophotometers. The depolarizer consists of two crystalline quartz wedges, assembled so that the crystal axes are at 45 degrees.
Product Details
Features
- Length to aperture ratio: 0.85 to 1.0
- Wavelength range: 350 to 2300 nm
- Angular polarized field: 8.5 degrees (symmetrical with respect to the prism axis at 360 nm)
