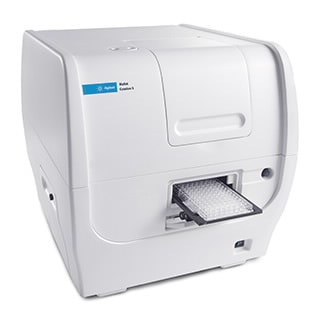

Imaging Multimode Microplate Reader, BioTek Cytation

Features

The 100 mW Alpha Laser delivers laser-based excitation and offers the power required for high sensitivity and fast reading speeds. This excitation is critical for Alpha assays and ensures high-quality data
Modular and upgradable for multimode workflows, flexible configurations address assay needs now and the future. Modularity lets you add automated digital microscopy to the multimode system for flexibility as your research requirements change
Patented Hybrid Technology features a hybrid optical design. Filter-based fluorescence optics for high transmission and high sensitivity, and monochromator optics for convenience and assay flexibility. Multiple fluorescence measurement modes in many workflows
Variable bandwidth monochromators in multimode systems include quad monochromators with variable bandwidths, selectable from 9 to 50 nm, in 1 nm increments. Variable bandwidths enable optimized detection and provide better performance for your assays
The Peltier Cooling Module facilitates interior cool down after incubated processes allowing efficient switching between multiple applications. The module maintains environmental stability regardless of external and internal temperature fluctuation

Specifications


Automation Compatibility	BioStack BioSpa BenchCel 3rd-party
Environment Control	4-Zone Incubation to 45 °C 4-Zone Incubation to 65 °C Condensation Control Peltier Cooling CO2, O2 Control
Filter Detection Modes	Fluorescence Intensity Fluorescence Polarization BRET Luminescence TR-FRET Alpha (Laser) Time Resolved Fluorescence
Imager/Reader Options	Joystick stage control Reagent injectors
Instrument Control	Computer Software
Monochromator Detection Modes	Fluorescence Intensity (variable bandwidth) UV-Vis Absorbance
Shaking	Double-orbital Linear Orbital
Supported labware	6 to 384-well plates Take3/Take3 Trio Petri/Cell culture dishes Slides Cell culture flask, T25 Hemocytometers

Return to top

How It Works

Applications

Technology

Peltier cooling for environmental stability

The Peltier Cooling Module promotes a rapid interior cool down after incubated processes, allowing efficient switching between multiple applications. For temperature sensitive assays run at room temperature, the Cooling Module maintains temperature, allowing < 1 °C rise regardless of internal or external fluctuation.
