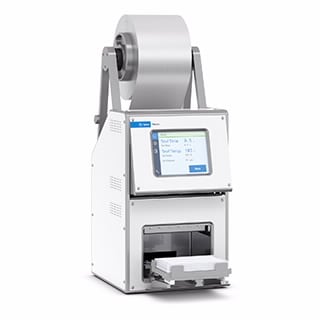

Automated microplate sealer, Lab plate sealer, PlateLoc sealer

Features

Intuitive touch screen interface and fast cycle times with no cool-down period enable fast plate sealing
Automatically adjusts to accommodate a wide range of microplates and includes four types of plate stage inserts to provide support for even the most challenging microplate types
Energy efficient sleep mode shuts off the screen and hotplate after a designated time of inactivity to save energy
Quick configurability with up to 10 programmable presets to save time when changing seal settings for different sealing applications
Small instrument footprint and numerous proven integrations make the PlateLoc Sealer ideal for system integration

Specifications


Automation Compatibility	BenchCel Workstation
Certification	CE Marking (EU) cCSAus Mark (Canada, USA NRTL) RCM (Australia)
Cooldown Time	90 min
CycleTime	Approximately 8 seconds per plate
Dimensions (WxDxH)	21.6 cm x 39.9 cm x 58.4 cm
Heat Seal	Clear and aluminum seal rolls, pierceable and peelable options
Instrument Control	VWorks Automation Control Software
Microplate Height	Up to 51 mm (2'')
Sealing Technology	Thermal (roll fed)
SealingTemperature	30 - 200 °C
Supported Labware	ANSI/SBS 1-2004 through ANSI/SBS 4-2004 standard microplates Thermal sealing compatible plates with raised sample well rims Skirtless/half-skirt PCR plates require PCR Plate Support
Warmup Time	5 min
Weight	20 kg

Return to top

How It Works

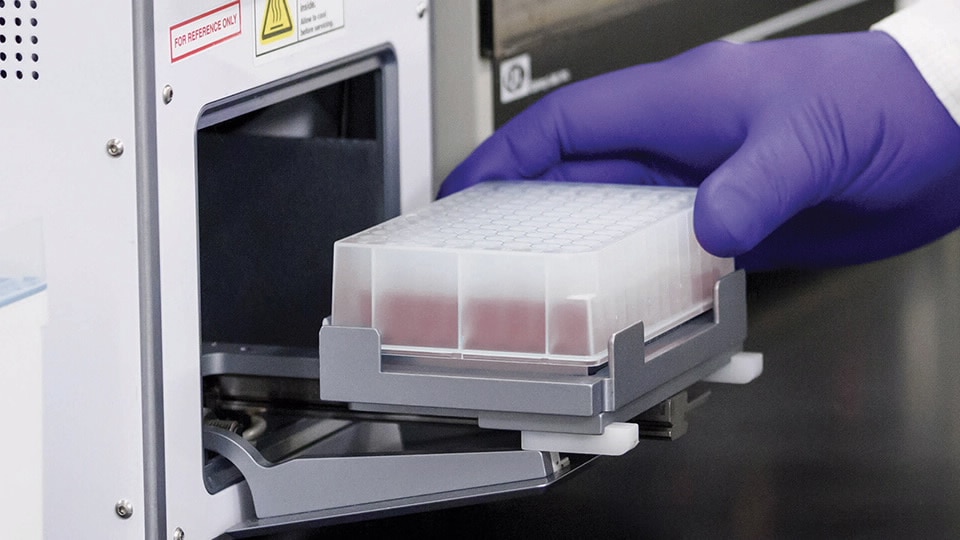

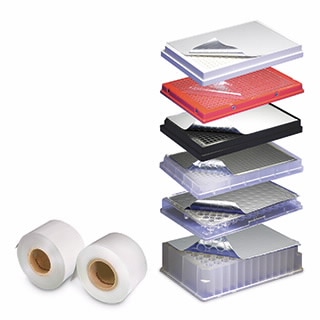

A Wide Variety of Seal Types for Your PlateLoc Thermal Microplate Sealer

Agilent offers a range of PlateLoc microplate heat seals made from aluminum-based or optically clear materials with peelable, pierceable, or permanent sealants to match most microplate materials and applications, including polypropylene, polystyrene, and cyclic olefin copolymer (COC). The seal time and temperature depend on the type of microplate and seal that you are using. We recommend running optimization tests to determine the optimal seal time and temperature.

For the most up-to-date starting point settings, see the Seal Selection Guide.

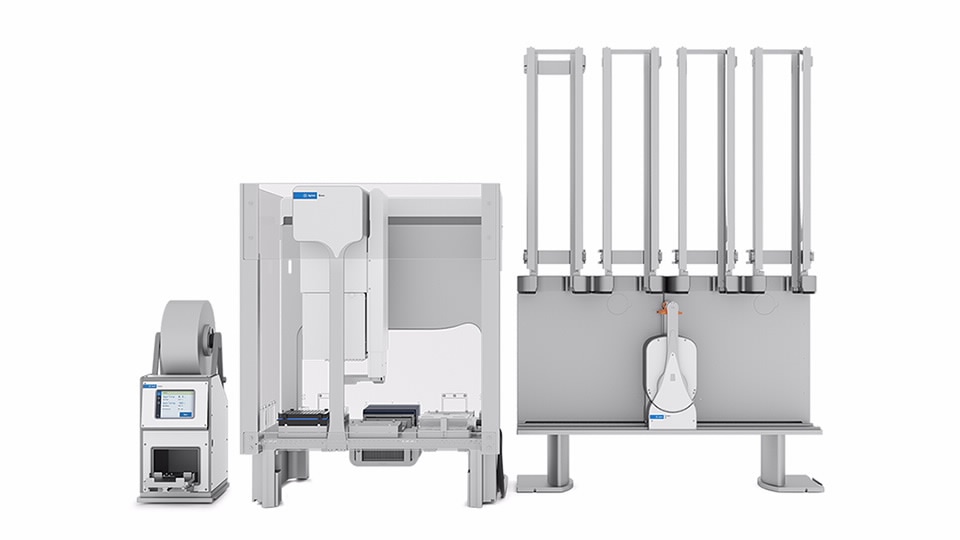

Agilent Automation Offers Modular Solutions for Flexibility in Your Lab

Agilent automation solutions can integrate with a wide range of instruments to create flexible benchtop solutions. An automated microplate sealing workstation can be created with two Agilent instruments: the BenchCel microplate handler and the PlateLoc thermal microplate sealer. With a capacity of two to six labware stacking racks, the thermal microplate sealer and microplate handler can automate the sealing of hundreds of microplates. Add a Bravo automated liquid handling platform, microplate labeler, or centrifuge for expanded applications.
