Cary WinUV Color Measurement Software
Measure, analyze, and report color with confidence
- In many industries, colorimetry—the process of monitoring the hue and consistency of a product’s color—is essential for quality control. Cary WinUV Color software enhances the capabilities of Cary spectrophotometers, adding versatile color measurement tools for QA/QC monitoring or deeper color investigations of liquids and solids. Whether for brand recognition, perceived quality, overall aesthetics, or specific applications like cosmetics, Cary WinUV Color ensures precise color measurement under various lighting conditions.
- Cary WinUV Color includes all major, internationally accepted color calculations in a simple, configurable sequence. Reports are automatically generated using the selected color coordinate system, including chromaticity, tristimulus, and CIELAB values. The software quickly produces routine QA/QC reports—and has the power to investigate subtle color differences in investigations that require highly accurate spectrophotometers.
- Benefit from a concise and comprehensive Color package in a simple application for calculation, reporting, and data export
- Choose from CIE and other internationally recognized color numbers—CIELAB, L*u*v*, tristimulus, and chromaticity, including graphical displays of color spaces
- Select up to 50 samples at one time for calculations
- Perform calculations over one of three selectable wavelength ranges (360 to 830, 380 to 780, or 400 to 700 nm) at one of three data intervals (1, 5, or 10 nm)
- Apply a thickness correction when comparing the color of samples of varying thicknesses
- Use the Match feature to highlight the difference between the L*a*b* of a sample and a standard
Overview
Specifications
How it works
Cary WinUV Color measurement

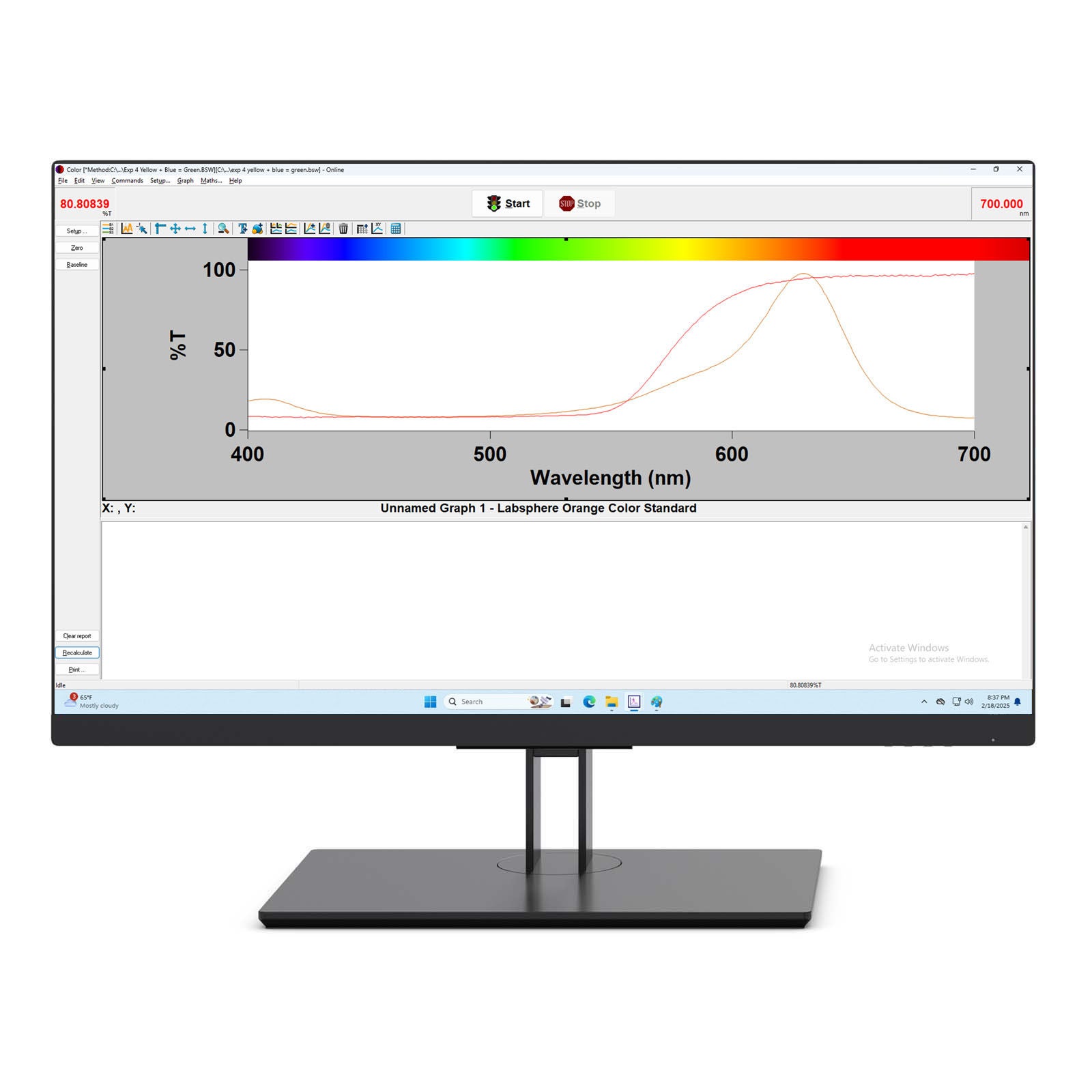

If you need more than a basic colorimeter, and optical performance underpins your needs, Agilent’s Cary double beam spectrophotometers help elevate your color measurement outcomes. The Cary WinUV Color application has been streamlined to ensure the spectrophotometer control defaults to the most convenient setup. Simply select the key color attributes you need and get started. The application prompts you to collect a baseline and data collects begin by clicking the START button. Spectra are displayed during data collection, with graphical plots of the color numbers and tabulated reports automatically generated on completion.
Instrument control
Configure your spectrophotometer using the standard solid sample holder or cell holder for transmitted color. You may also choose a diffuse reflection accessory for reflected color, or the Universal Measurement Accessory for 0/45 deg color measurement and bespoke customer angle color determinations. If you sample is too large, or too irregular in shape to place in the spectrometer, simply use fiber optic-based measurement probes to take your measurement to the sample instead.
Learn more: UV-Vis-NIR Solid Sample Measurement Accessories Guide
Color reporting
Graphical color space plots and tabulated reports are generated for easy review of results. Reports are created with selectable options such as AutoPrint, inclusion of a company logo, auto export data to csv file format, a tabulated X-Y pairs table, a spectral peak table, and more.
Data can be stored in the native Cary WinUV file format, as comma separated variable (CSV) data—with or without method parameters—or in rich text format (RTF).
Applications
Colors for all seasons
The diversity of needs and drivers for color measurements can be extensive. Example applications of UV-Vis color testing can be found in sectors such as foods and beverages, pharmaceuticals, textiles, automotive, plastics, paints, electronics, personal care products, cosmetics, and many more. Check out our white paper to make sense of the red from the blue, and black from the white.
Read the white paper: Color Measurements by Agilent UV-Vis and UV-Vis-NIR Spectrophotometers
Colors on canvas
Whether measuring the color of liquids for chemical analysis, bulk solids for color perception, or small objects for investigative tasks or art research, Cary WinUV Color software has it covered. In the following application note, the color of paint pigment on sample areas as small as 2 mm diameter can be measured with ease.
Read the application note: Measuring the Color of a Paint on Canvas
The color of mirrors
It may seem surprising, but the color of mirrors is of great importance in certain applications, particularly in the advanced materials industry. In this example, researchers determined the reflectivity of ultra-thin mirrors used to create visual displays in smart phones. The focus of the study was on angular viewing differences, to ensure that display colors do not change when displays are viewed from different angles.
Read the application note: Measuring the Performance of Compact Visual Displays
Agilent Molecular Spectroscopy Software Support Lifecycle Policy
Check the lifecycle status for revisions of the Agilent molecular spectroscopy suite of software products, so you can plan and maintain an active support status.
supplemental-information
Frequently asked questions
What is UV-Vis Spectroscopy? Principles Overview
An introduction to the basics of UV-Vis spectroscopy and UV-Vis spectrophotometers, with FAQs on the fundamentals of UV-Vis, how UV-Vis spectrophotometers work, UV-Vis analysis, applications, accessories, and measurement techniques.
style
Tools
UV-Vis Spectroscopy Learning Tools
Get your Basics of UV-Vis Spectrophotometry handbook, and a pack of four undergraduate teaching lab experiments.
UV-Vis & UV-Vis-NIR Instrument Selection Guide
Find out which Agilent UV-Vis or UV-Vis-NIR spectrophotometer is best for your needs.
UV-Vis Spectrophotometer Applications Overview
A guide to modern UV-Vis spectrophotometer uses, measurement techniques, and their applications.
UV-Vis-NIR Solid Sample Measurement Accessories Guide
Learn about key solid sample accessories for Cary 4000, 5000, 6000i, and 7000 spectrophotometers.
Training & events
Molecular Spectroscopy Webinar Curriculum
Molecular Spectroscopy Webinar Curriculum includes UV-Vis, UV-Vis-NIR, fluorescence, handheld and benchtop FTIR, and Raman systems for high performance and flexibility
Spectroscopy Digital Workshops & Bootcamps
Hone your lab skills, outside the lab, with our live, interactive series of virtual workshops and software bootcamps! Learn about the latest in software solutions for Spectroscopy, discuss the entire analytical process from method development to data analysis, and participate in live analytical runs with our experts. We hope these will prepare you for future hands-on events in the future.
News
Low-Level UV-Vis Haze Detection for Improved Reliability of Li-Ion Battery Electrolytes
UV-Vis is an ideal tool for detecting particulate contamination in lithium-ion battery electrolytes. Using haze (turbidity) measurements, the Agilent Cary 60 UV-Vis with a diffuse reflectance accessory provides a rapid, sensitive method to monitor purity and address degradation caused by water-sensitive components, helping ensure electrolyte stability and battery performance.
04 Aug 2025
New Cary WinUV Color Software for Cary 4/5/6/7000 UV-Vis/NIR Spectrophotometers
A new version of Cary WinUV Color Software (v6.5) has been released for the Cary 4/5/6/7000 UV-Vis/NIR Spectrophotometers. This Color Software is suitable for Cary 4/5/6/7000 UV-Vis/NIR systems running on the Cary WinUV v6.5 software, or the recently released Cary WinUV v6.6 software.
01 Apr 2025
