X3602-64033
Please login to add product to your favorites.

Ion Pump Controllers

Part Number:
X3602-64033

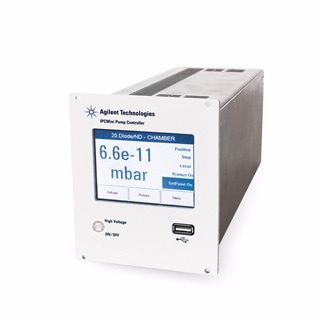

IPCMini ion pump controller, 24 VDC, SHV high voltage connector, positive polarity, Ethernet

+ Create New list
Item successfully added to your list

Subscribe to this item in cart or checkout

More lab efficiency with your auto delivery schedule, modify and cancel it at any time. Simply select subscription delivery frequency in the cart or checkout, and submit your order. How does it work?

List Price:
$1,829.00 /1 Each
Request Quote

Please enter valid quantity

Specifications
Communications Interface
  • Ethernet
  • RS232
  • RS485
Dimensions (WxHxL)
  • 106.4 mm x 129.4 mm x 245 mm
Display
  • Touchscreen
HV Connector
  • SHV
Height
  • 129.4 mm
Input Frequency
  • 50 / 60 Hz
Input Voltage
  • 24 Vdc
Length
  • 245 mm
Maximum Input Power
  • 160 VA
Maximum Output Power
  • 40 W
Modes of Operation
  • Local
  • Remote
  • Serial
Output Voltage
  • 3 kV
  • 5 kV
  • 7 kV
Polarity
  • Positive
Rack Mount Size
  • 4U 1/4 Rack
Standards and Certifications
  • EN 61010-1 2010
  • EN 61326-1 2013
Weight
  • 2 kg
Width
  • 106.4 mm
