Fragment Analyzer Plasmid DNA Kit

Part Number:

Plasmid DNA Analysis Kit, 500 Samples. Fragment Analyzer system kit for the qualitative analysis of supercoiled plasmids from 2000 to 10000 bp. Includes reagents necessary for running 500 samples.

For Research Use Only. Not for use in diagnostic procedures.
Item successfully added to your list
List Price:
$450.00 /1 Kit

Please enter valid quantity

Assay Sensitivity
  • Standard
DNA Sizing Range
  • 2000-10000 bp
Fragment Sensitivity Range
  • 0.1–1.0 ng/µL
Guaranteed Shelf Life
  • Minimum 4 months
Kit Type
  • Qualitative
Sizing Accuracy
  • ± 10 %
Uses Per Kit
  • 500

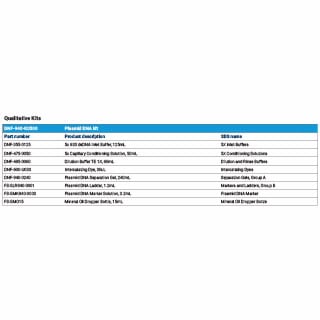

Kit Contents
Part Number Product Description Quantity
DNF-355-0125 5x 930 dsDNA Inlet Buffer, 125mL 1
DNF-475-0050 5x Capillary Conditioning Solution, 50mL 1
DNF-495-0060 Dilution Buffer 1x TE, 60mL 1
DNF-600-U030 Intercalating Dye, 30 µL 1
DNF-940-0240 Plasmid DNA Separation Gel, 240mL 1
FS-SLR940-0001 Plasmid DNA Ladder, 1.2 mL 1
FS-SMK940-0003 Plasmid DNA Marker, 3.2 mL 2
FS-SMO15 Mineral Oil Dropper Bottle, 15mL 1
User Manuals

Agilent DNF-940 Plasmid DNA Quick Guide for Fragment Analyzer Systems

This Quick Guide is intended for use with the Agilent 5200, 5300, and 5400 Fragment Analyzer systems only. The DNF-940 Plasmid DNA kit from Agilent (500 Samples) (Part # DNF-940-K0500) was developed for the analysis of supercoiled plasmid DNA between 2,000 bp and 10,000 bp.
