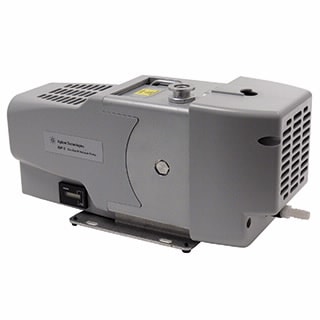

IDP-3 Dry Scroll Pump

Part Number:
IDP3B01

IDP-3 dry scroll vacuum pump, 1 phase motor, 115 V, 60 Hz

+ Create New list
Item successfully added to your list

Subscribe to this item in cart or checkout

More lab efficiency with your auto delivery schedule, modify and cancel it at any time. Simply select subscription delivery frequency in the cart or checkout, and submit your order. How does it work?

List Price:
$3,609.00 /1 Each
Request Quote

Please enter valid quantity

Specifications
Base pressure (50 Hz) - Torr & mbar
  • 2.5 x 10-1 Torr
  • 3.3 x 10-1 mbar
Base pressure (60 Hz) - Torr & mbar
  • 2.5 x 10-1 Torr
  • 3.3 x 10-1 mbar
Dimensions (WxHxL)
  • 5.5 in x 7.13 in x 14.09 in
Exhaust Connection
  • ¼ inch female NPT (10 mm hose barb provided)
Height
  • 7.13 in
Inlet Connection
  • NW16
Input Voltage
  • 1Ø, 115 V. 60 Hz
Length
  • 14.09 in
Noise Level
  • 55 dB(A)
Pumping Speed (50 Hz)
  • 1.8 CFM
  • 3 m3/h
  • 50 L/min
Pumping Speed (60 Hz)
  • 2.1 CFM
  • 3.6 m3/h
  • 60 L/min
UNSPSC Code
  • 40151502
Width
  • 5.5 in
