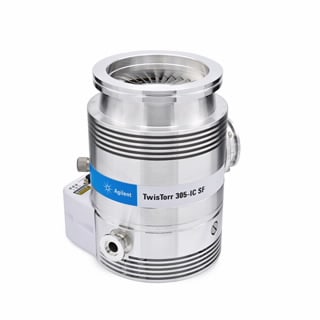

TwisTorr 305-IC SF Turbo Pump with Integrated Controller

Part Number:
X3513-64066

TwisTorr 305-IC SF dual flow turbo pump with integrated controller, DN 100 ISO-K, air cooling, RS485A

Item successfully added to your list
List Price:
$13,137.00 /1 Each
Request Quote

Please enter valid quantity

Specifications
Ambient Operating Temperature
  • +5 to +35 °C
Ambient Storage Temperature
  • -40 to +70 °C
Base Pressure
  • < 1 x 10-10 Torr
  • < 1 x 10-10 mbar
Compression Ratio H2
  • 2 x 104
Compression Ratio He
  • 1 x 105
Compression Ratio N2
  • 2 x 108
Cooling Method
  • Air cooling
Flange Type
  • ISO 100 K
Foreline Flange Size
  • KF 16 NW
Height
  • 205.05 mm
Length
  • 174.80 mm
Maximum Gas Throughput - He, Water Cooling
  • 500 sccm
Maximum Gas Throughput - N2, Water Cooling
  • 380 sccm
Noise Level
  • 41 dB(A)
Pumping Speed - H2
  • 220 L/s
Pumping Speed - He
  • 255 L/s
Pumping Speed - N2
  • 250 L/s
Standards and Certifications
  • EN 61010-1
    EN 61326-1
    EN 1012-2
    EN 12100
    EN 50581
    Machinery Directive 2006/42/EC
    Electromagnetic Compatibility Directive 2014/30/
    EU Directive 2011/65/EU
Weight
  • 5.74 kg
Width
  • 144 mm
