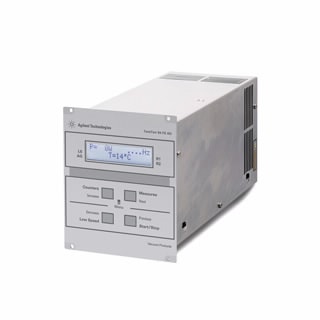

TwisTorr 84 FS-AG Rack controller

Part Number:
X3508-64002

TwisTorr 84 FS rack controller, Profibus

Item successfully added to your list
List Price:
$3,861.00 /1 Each
Request Quote

Please enter valid quantity

Specifications
Communications Interface
  • Profibus
  • RS232
  • RS485
Compatible Mains Cables
  • IEC-320
Configuration
  • Remote controller, rack-mounted
Dimensions (WxHxL)
  • 106.4 mm x 128.5 mm x 244 mm
Display
  • LCD
Height
  • 128.5 mm
Input Frequency
  • 50 to 60 Hz
Input Voltage
  • 100-240 Vac (±10%)
Length
  • 244 mm
Maximum Input Power
  • 450 VA
Maximum Pump Cable Length
  • 100 m
Modes of Operation
  • Local
  • Remote
  • Serial
Pump Model Compatibility
  • TwisTorr 84 FS Turbo Pump
Rack Mount Size
  • 3U 1/4 Rack
Standards and Certifications
  • EN 61010 -1
    EN 55011 (Class-A)
    EN 61000-3-2,
    EN 61000-3-3,
    EN 61000-6-2,
    EN 61000-4-2,3,4,5,6,11, 8
Storage Temp Conditions
  • Store from -20°C to +70°C
UNSPSC Code
  • 32151706
Weight
  • 1.7 kg
Width
  • 106.4 mm
