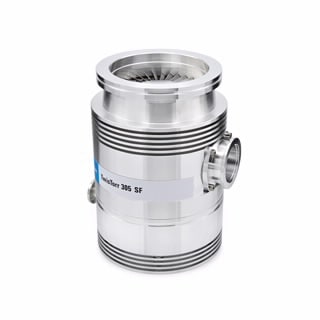

TwisTorr 305 SF Turbo Pump

Part Number:
X3513-64067

TwisTorr 305 SF Dual Flow Turbo Pump, ISO100K, Air Cooling

Item successfully added to your list
List Price:
$10,206.00 /1 Each
Request Quote

Please enter valid quantity

Specifications
Ambient Operating Temperature
  • +5 to +35 °C
Ambient Storage Temperature
  • -40 to +70 °C
Base Pressure
  • < 1 x 10-10 Torr
  • < 1 x 10-10 mbar
Compression Ratio H2
  • 2 x 104
Compression Ratio He
  • 1 x 105
Compression Ratio N2
  • 2 x 108
Cooling Method
  • Air cooling
FlangeType
  • ISO 100 K
Foreline Flange Size
  • KF 16 NW
Height
  • 205.55 mm
Length
  • 174.80 mm
Maximum Gas Throughput - He, Water Cooling
  • 500
Maximum Gas Throughput - N2, Water Cooling
  • 450 sccm
Noise Level
  • 41 dB(A)
Pumping Speed - H2
  • 220 L/s
Pumping Speed - He
  • 255 L/s
Pumping Speed - N2
  • 250 L/s
Standards and Certifications
  • Directive 2011/65/EU
  • EN 1012-2
  • EN 12100
  • EN 50581
  • EN 61010-1
  • EN 61326-1
  • Electromagnetic Compatibility Directive 2014/30/EU
  • Machinery Directive 2006/42/EC
Weight
  • 5.84 kg
Width
  • 144 mm
