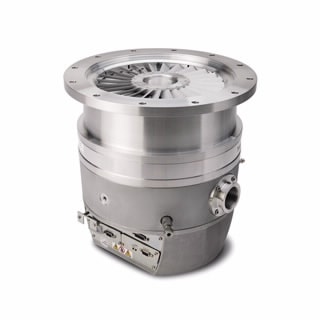

Turbo-V 2K-G Pump

Part Number:
9698873

Turbo-V 2K-G turbo pump and controller, DN 250 ISO-F, Profibus. Pumping system includes pump and controller with 230 V integrated electronics, purge and vent valves integrated, inlet screen installed on the pump, separate centering ring and pre-installed IP54 mating connectors.

+ Create New list
Item successfully added to your list
/1 Each
Request Quote

Please enter valid quantity

Specifications
Ambient Operating Temperature
  • +5 to +40 °C
Ambient Storage Temperature
  • -20 to +70 °C
Base Pressure
  • <1 x 10-8 mbar
Compression Ratio N2
  • 3 x 105
Flange Type
  • ISO 250 F
Foreline Flange Size
  • KF 40 NW
Pumping Speed - Ar
  • 1400 L/s
Pumping Speed - N2
  • 1600 L/s
Standards and Certifications
  • EN 55011 (Radio disturbance characteristics)
    EN 61000-3-2 (Limits for harmonic current emissions)
    EN 61000-3-3 (Limitation of voltage changes, voltage fluctuations and flicker)
    EN 61000-6-2 and EN 61326 (Immunity for industrial environments) which recall:
    EN 61000-4-2 (Electrostatic discharge phenomena)
    EN 61000-4-3 (Radiated high-frequency phenomena)
    EN 61000-4-4, EN 61000-4-5, EN61000-4-6 (Conducted high-frequency phenomena)
    EN 61000-4-11 (Voltage fluctuation, voltage dips and short interruptions)
UNSPSC Code
  • 40151502
Weight
  • 35 kg
