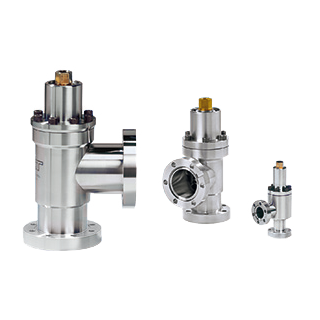

全金属 UHV 阀系列 54
安捷伦与 VAT 合作,为您提供适用于高真空和超高真空 (UHV/XHV) 的全金属 UHV 阀系列 54。可使用标准六角扳手手动操作,无需扭矩扳手。
由于采用了金属接触式密封,这些阀可在运行上千次后再进行下次维护。Flex Vatring 技术可实现较高的密封力,而轴向力却相对较低。可选任意安装方向。
由于采用了金属接触式密封,这些阀可在运行上千次后再进行下次维护。Flex Vatring 技术可实现较高的密封力,而轴向力却相对较低。可选任意安装方向。
- Vacuum Valves
No data to display
This product is not available for purchase by the general public.
Product Details
Features
- 泄漏率:阀体、阀座 < 1x10-10 mbar ls-1
- 插板处压力差 < 2 bar
- 开启时压差 < 1 bar
- 寿命 > 1000 次循环
- 烘烤温度 < 300 °C
- 材料 AISI 316L
- 任意安装方向
- 流导 NW 16:5 L/s,NW 40:50 L/s
- 使用标准六角扳手即可便捷操作 — 无需扭矩扳手
- 密封表面仅发生弹性变形
