X3509-64000
Please login to add product to your favorites.

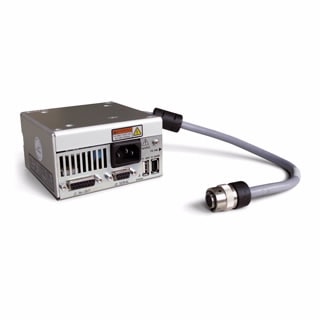

TwisTorr 84 FS On-Board Controller

Part Number:
X3509-64000

TwisTorr 84 FS onboard controller, 110-220 V

Item successfully added to your list
List Price:
$1,813.00 /1 Each
Request Quote

Please enter valid quantity

Specifications
Communications Interface
  • RS232
Compatible Mains Cables
  • IEC-320
Configuration
  • Onboard controller
Dimensions (WxHxL)
  • 107 mm x 59 mm x 107 mm
Display
  • No display
Height
  • 59 mm
Input Frequency
  • 50 to 60 Hz (±5%)
Input Voltage
  • 100-240 Vac (±10%)
Length
  • 107 mm
Maximum Input Power
  • 130 VA
Maximum Pump Cable Length
  • 100 m
Modes of Operation
  • Remote
  • Serial
Pump Model Compatibility
  • TwisTorr 84 FS Turbo Pump
Standards and Certifications
  • EN 61010 - 1 (2001)
    EN 55011 (Class-A)
    EN 61000-3-2,
    EN 61000-3-3,
    EN 61000-6-2 (2005)
    EN 61000-4-2
    EN 61000-4-3
    EN 61000-4-4
    EN 61000-4-5
    EN 61000-4-6
    EN 61000-4-8
    EN 61000-4-11
Storage Temp Conditions
  • Store from -20°C to +70°C
UNSPSC Code
  • 32151706
Weight
  • 0.5 kg
Width
  • 107 mm
