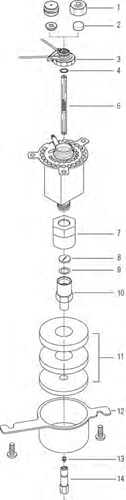

1 |
Headspace septum retainer nut |
|
18740-60830 |
|
Septum retainer nut |
|
18740-60835 |
|
Strain relief septum nut |
|
301-205-HSP |
|
2 |
11 mm Certified BTO septa |
50/pk |
5183-4757 |
|
3 |
7890 Insert Weldment |
|
|
|
|
Top insert weldment assembly, standard |
|
G3452-60730 |
|
Turn top |
|
G3430-40035 |
|
Split ring |
|
0510-1306 |
|
Top insert weldment assembly, headspace |
|
G3452-60100 |
|
Top insert, AC gang fitting weldment |
|
G3430-60011 |
|
Top insert assembly, valve |
|
G3480-67585 |
|
6890 Insert Weldment |
|
|
|
S/SL insert weldment
Used with large charcoal canister type filter, for 6890/6850 |
|
G1544-60585 |
|
S/SL insert assembly for G1540A with valved system option
This insert assembly uses the large charcoal canister split vent filter,
for 6890/6850 |
|
G1580-60585 |
|
Similar to G1544-60575 except carrier lines separated for interface
to valved systems of a G1540A instrument |
|
G1580-60575 |
|
Original standard EPC using 1/4 in split vent filter |
|
G1544-60575 |
|
Similar to G1544-60575 except allows insertion of 1/4 in chemical filters
to clean carrier gas for ECD operation |
|
G1544-80580 |
|
Insert Weldment Standard manual pneumatics |
|
19251-60575 |
|
4 |
Certified non-stick fluorocarbon O-ring |
10/pk |
5188-5365 |
|
Graphite O-ring for split liner |
10/pk |
5180-4168 |
|
Graphite O-ring for splitless liner |
10/pk |
5180-4173 |
|
Non-stick fluorocarbon liner O-ring for Flip Top |
10/pk |
5188-5366 |
|
5 |
Split liner, single taper, low pressure drop, glass wool |
1/pk
25/pk |
5183-4647
5183-4702 |
|
Splitless liner, single taper, without glass wool |
1/pk
25/pk |
5181-3316
5183-4696 |
|
6
|
Split vent trap kit |
|
G1544-60610 |
|
Replacement cartridge
Includes 2 cartridges and 4 O-rings |
|
G1544-80530 |
|
Split vent trap PM kit
Includes 1 cartridge and 2 O-rings |
|
5188-6495 |
|
7 |
Retaining nut |
|
G1544-20590 |
|
8 |
Stainless steel seal |
|
18740-20880 |
|
Certified gold plated seal kit, includes washer |
|
5188-5367 |
|
Gold plated seal with cross |
|
5182-9652 |
|
9 |
Washers, 0.375 od |
12/pk |
5061-5869 |
|
10 |
Reducing nut |
|
18740-20800 |
|
11 |
Insulation kit, 3 pieces |
|
5188-5241 |
|
12 |
Lower insulation cover |
|
19243-00070 |
|
13 |
Ferrules |
|
|
|
14 |
Universal column nut |
2/pk |
5181-8830 |
|
6850 column nut |
|
5183-4732 |
|
Split/splitless septum nut angled wrench |
|
19251-00100 |
|
Flip Top Inlet Sealing System
For 6890, 6850, 5890 only; not compatible with 7890 |
|
5188-2717 |
|
Capillary Inlet Evaluation Sample (Split Mode) |
|
8500-4789 |
|
Capillary Inlet Supplies Kit, Includes: |
|
5181-8838 |
|
Certified gold plated seal kit, includes washer |
|
5188-5367 |
|
Liner, split, straight, glass wool, non-deactivated |
4 each |
19251-60540 |
|
Liner, splitless, single-taper, glass wool, deactivated |
2 each |
5062-3587 |
|
Certified non-stick fluorocarbon O-ring |
10/pk |
5188-5365 |
|
Liner, direct, 2 mm id, deactivated |
|
5181-8818 |
|
11 mm Certified BTO septa |
50/pk |
5183-4757 |
|
Capillary inlet cleaning wires |
5/pk |
5180-4153 |
