IDP Oil Free Vacuum Pump

IDP Oil Free Vacuum Pump

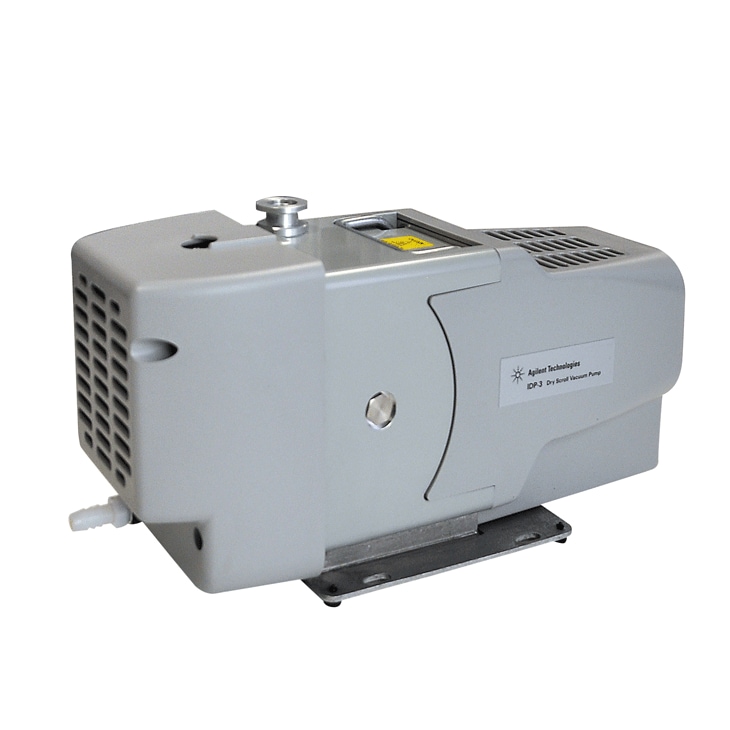

The Agilent IDP-3 Dry Pump provides an affordable, oil-free vacuum that has been qualified for existing Agilent 5977, 5975, and 5973 GC/MSD systems. The pump creates a vacuum using a simple dual scroll mechanism—one nested scroll orbits around the other, creating moving zones of captured gas. Gas enters the scroll pump at the perimeter and is displaced and compressed toward the center hub, where it is exhausted creating low ultimate pressure at high speed.

This unique solution eliminates the many issues surrounding oil pump maintenance like leaks, disposal costs, mess, and safety concerns. The IDP-3 Dry Pump only requires replacement of two tip seals and a single o-ring. This simple maintenance procedure is clean and can be accomplished in less than 30 minutes by anyone with modest mechanical skills.

The G6696A kit ensures you have everything need to replace troublesome oil pumps:

  • Localized Customer Installation Guides
  • 24 Volt Power Supply for direct connection to MSD (no need to order country specific voltage)
  • Correct fittings shipped for all versions of GC/MSD including 5977, 5975, and 5973
  • New Vacuum tube included to remove any oil contamination 1 year warranty
  • Now qualified for Hydrogen carrier and works with JetClean option
