傅里叶红外-便携式光谱仪-手持式红外光谱仪

特性

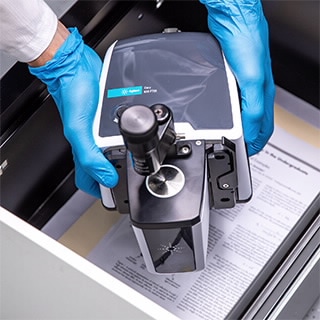

充分利用实验室空间 — 超小巧、超轻巧的台式 FTIR 光谱仪，占地 20 x 20 cm，重 3.6 kg，所占面积仅相当于笔记本，可轻松调整位置，随时随地生成高质量分析结果
持续提供可信赖的结果 — 经过充分验证的坚固光机系统，即便在潮湿和炎热环境下也具有出色的性能和重现性
快速获得定性和定量分析信息 — 识别未知物质并确定样品成分的含量

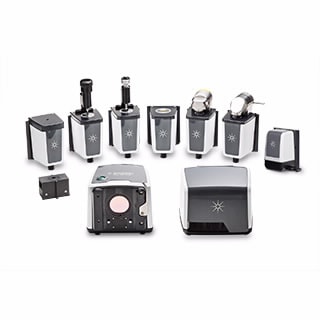

灵活应对不断变化的分析需求 — 独特的多功能模块化概念使 Cary 630 FTIR 光谱仪可以在数秒钟内对经过精确优化的样品模块进行重新配置，从而使用户能够应对实际应用中的各种挑战

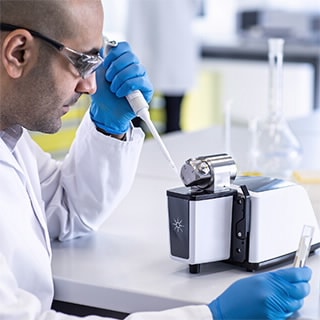

工作流程中不再需要透射池 — 独特的 DialPath 和 TumblIR 模块彻底改变了液体和聚合物薄膜的 FTIR 光谱仪分析方式，使透射 FTIR 测定像使用 ATR 一样简单
降低培训成本和用户差异性 — Cary 630 FTIR 光谱仪直观易用的设计与 Agilent MicroLab 软件相匹配，内置工作流程配有图片指导和彩色标记报告，使专家和新手都能轻松找到结果
管理用户权限并安全存储电子记录 — 可选的 MicroLab Pharma 软件为受监管环境下的用户提供支持，以符合 21 CFR Part 11 和 EU Annex 11 等全球数据可靠性法规要求

性能指标


光谱范围	KBr 7,000 to 350 cm^-1 ZnSe 5,100 to 600 cm^-1
合规性软件	MicroLab Pharma 软件
宽度	14 cm
控制软件	Microlab MicroLab Expert
样品类型	Solids Pellets Liquids Pastes Powders Gels Gases
深度	26 cm
电源要求	100-240 VAC，50/60 Hz
类型	Benchtop FTIR Spectrometer
谱库	多种即用型特定应用谱库
采样模块（可更换）	Diamond-ATR Ge-ATR ZnSe-ATR Multireflection ZnSe-ATR Transmission DialPath TumblIR Diffuse reflectance 镜面反射（10 度）镜面反射（45 度） Gas cell
重量	3.5 kg
高度	16 cm

返回页首

技术

ATR-FTIR 光谱

衰减全反射 (ATR) 是傅立叶变换红外 (FTIR) 光谱应用极为广泛的一种采样方法。ATR-FTIR 可快速、轻松地测量各种样品类型，包括液体、固体、粉末、半固体和糊剂。了解 ATR-FTIR 的工作原理、可用的不同类型 ATR 采样附件及其应用。

客户下载

透射 FTIR 光谱

透射 FTIR 模式适用于液体、气体、粉末和薄膜。了解透射 FTIR 光谱的工作原理、可用的不同类型透射 FTIR 采样附件及其应用。

客户下载

工作原理

应用

资料库

重要资料

Cary 630 FTIR Spectrometer Brochure

Agilent Cary 630 FTIR brochure

产品样本
English
2019 年 7 月 8 日
3.38 MB
PDF

Pharmaceutical Analysis using FTIR: Compliance with European, US, Indian, and Japanese Pharmacopoeia

Meeting the requirements of global pharmacopoeia with the Agilent Cary 630 FTIR

白皮书
English
2020 年 10 月 21 日
1.36 MB
PDF

Polymer Analysis with FTIR

Examples of common polymer analysis applications using both portable and benchtop FTIR instruments

产品样本
English
2020 年 7 月 20 日
434.94 KB
PDF

应用简报

产品样本

目录

宣传单页

挂图

基础导论

技术概述

白皮书

技术支持

常见问题解答

FTIR 光谱、红外光谱 — 常见问题解答

了解红外光谱和 FTIR 光谱的更多信息 — 关于 FTIR 原理、FTIR 光谱仪工作原理、FTIR 测量及 ATR-FTIR 类技术的常见问题解答

现场准备清单

用户手册

补充信息

说明书

单击鼠标即可获取更多帮助

如果您没有找到所需的信息，请尝试以下资源或联系专家

工具

Read reviews on the Cary 630 FTIR Spectrometer

Explore customer reviews posted on SelectScience, or write your own review.

分子光谱制药和生物制药解决方案指南

了解使用UV-Vis，FTIR，荧光，SORS和TRS技术的制药和生物制药中的产品和应用。

视频

培训与活动

Advances in FTIR and UV-Vis: No Need for Cells in Liquid Sample Analysis

This webcast will highlight the benefit of advanced sampling technologies in achieving fast, easy, and reliable measurements of liquid samples in comparison with the traditional liquid cells used for FTIR and UV-Vis measurements.

网络研讨会/培训

FTIR Spectroscopy in Pharmaceutical Analysis: Hardware, Applications, Tips & Tricks

Stay up to date with the best practices to minimize costly downtime and achieve great results from your systems.

网络研讨会/培训

Improve ROI with Fast Assessment of Decarboxylation Status in Cannabis and Hemp Extracts

A key step in cannabis oil production is the decarboxylation of naturally produced THCA to psychotropic THC or CBDA to CBD, respectively. This step can be done either before extraction by heating the flower or after extraction by heating the cannabis oil. In both cases, heat is used to speed up the decarboxylation process. But with this heating step come considerations and problems. Excess heat or time will degrade the cannabinoids to unwanted side products, and it will tie up production capacity and generally incur higher production costs. To better control this important processing step, we have developed an infrared (IR) monitoring solution that can track decarboxylation progress in near real-time. We have been able to validate the process for decarboxylation of both THCA and CBDA in both flower and oil. We will present our monitoring solution and the Agilent IR platform that enables this work.

网络研讨会/培训

新闻

Rapid Analysis of New and Used Lithium-ion Battery Separators with the Agilent Cary 630 FTIR Spectrometer

In this application note, the Cary 630 FTIR spectrometer was used to analyze both a new, pristine lithium-ion battery separator and an aged, used separator. The Cary 630 FTIR successfully identified the two separator samples as polypropylene and polyethylene. Additionally, it facilitated the examination of potential contaminants originating from other components within the used separator. Notably, the automatic color-coding of results turns the Cary 630 FTIR into a user-friendly, turnkey solution that enables quick decision-making.

2024 年 4 月 1 日

基础导论 — 安捷伦锂离子电池行业解决方案

不清楚从哪里开始着手进行锂离子电池测试？想要明确了解如何应对多种测试需求？阅读安捷伦关于矿物、加工、电池组件和检漏解决方案的入门指南，助力您的实验室取得成功。

2023 年 12 月 19 日

Cary 630 FTIR 在锂离子电池研究和质量控制中的应用

对最关键的锂离子电池电解液组分（即溶剂和锂盐）进行材料鉴定对于确保成品锂离子电池中电解液的性能、安全性和稳定性至关重要。这两份应用简报介绍了 Agilent Cary 630 FTIR 光谱仪如何为锂离子电池中所用的溶剂和锂盐的材料鉴定提供简便的工作流程。

2023 年 8 月 22 日
